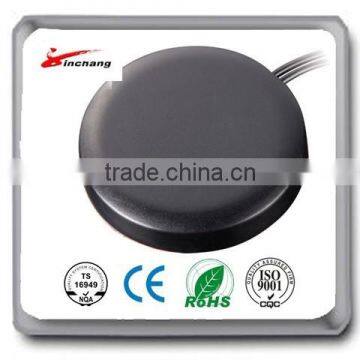

High Gain Dual Band GPS GSM Antenna
- 50000 Piece / Pieces per Month
- Shanghai
- T/T L/C Credit Card PayPal
You May Like
-
(Manufactory) high quality 3G swivel GSM car Antenna
-
(Manufactory) high quality swivel antenna Sucker gsm Antenna
-
(manufactory)High quality low price free sample GPS/GSM Antenna black/withe color
-
(Manufactory) navi white gps gsm white antenna
-
(Manufactory) high quality 3G rubber flexible GSM antenna
-
(manufactory)High quality navigation GPS/GSM Antenna
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jinchang Electron | |
| Model Number | JCB011C | Car Make | Any Car | |
| Frequence Range | GPS: 1575mhz; GSM: 824~960MHz/1710~2170MHz | Gain(dB) | 28±2dBi | |
| Cable Length | 3m,5m or others |
Product Description
Electrical Characteristics
1.1 GPS Dielectric Antenna
Form 1
No. | Item | Specifications | Post Environmental Tolerance |
1 | Center Frequency(MHz) | 1575.42 MHz | ±1MHz |
2 | Band Width(MHz) | ±5 MHz | ±1 MHz |
3 | V.S.W.R(in BW) | <1.5 | — |
4 | Gain(Zenith) | 5 dB | ±0.5 dB |
5 | Polarization | RHCP | — |
6 | Impedance | 50 Ω | — |
1.12 GSM Antenna
GSM Antenna | Frequency Range | 824~960MHz/1710~2170MHz |
| V.S.W.R | <2.0 |
| Polarization | Linear |
| Gain | 2dBi |
| Impendance | 50Ω |
1.13 LNA
Form 2
No. | Item | Specifications | Post Environmental Tolerance |
1 | LNA Gain | 28±2 dB | ±2.5 dB |
2 | Noise Figure | <1 | — |
3 | Filter Insertion Loss | <3db | -- |
4 | Ex-band Attenuation | 35dB@CF±50MHz/50dB@CF±100MHz | |
5 | Supply Voltage | 2.2~5V DC | |
1.4 Mechanical
Form 3
No. | Item | Specification |
1 | Cable | RG174 3m/5m or others |
2 | Connector | SMA/MMCX/FAKRA or others |
3 | Plastic Housing | Black |
4 | Mounting | Magnet/Adhesive |
