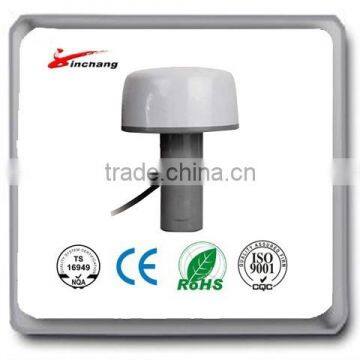

GPS/GSM Antenna
US$ 2 - 10
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T L/C Credit Card PayPal
You May Like
-
(Manufactory) Free sample high quality GPS+GSM Combi high powered car auto Antenna With SMA SMB MCS FAKRA
-
(Manufactory)high quality 850/900/1800/1900MHz chip gsm internal Antenna
-
GPS/GSM Combo antenna with SMA/MCX/FAKRA or others
-
(Manufactory) High quality 900 1800MHz internal gsm antenna
-
(Manufactory) 824~960/1920-2170MHz T shape gsm internal antenna
-
(Manufactory)high quality 3G vehicle terminal Car internal gsm antenna
Product Details
| Place of Origin | Zhejiang, China | Brand Name | jc | |
| Model Number | JCB005 |
Product Description
1 Electrical Characteristics
1.1 Dielectric Antenna
Form 1
No. | Item | Specifications | Post Environmental Tolerance |
1 | Center Frequency | 1575.42 MHz | ±1 MHz |
2 | Band Width | CF±5MHz | --- |
3 | V.S.W.R(in BW) | <1.5 | — |
4 | Gain(Zenith) | 5dB | --- |
5 | Axial Ratio | 3dB(max) | — |
6 | Impedance | 50 Ω | — |
1.2 LNA/Filter
Form 2
No. | Item | Specifications | Post Environmental Tolerance |
1 | LNA Gain | 28±2 dB | --- |
2 | Noise Figure | <1.5 dB | — |
4 | Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |
5 | V.S.W.R | <2.0 | |
1.3 GSM Antenna
Form 3
No. | Item | Specifications |
1 | Frequency | 824~960MHz/1710~2170MHz |
2 | V.S.W.R(5m) | <2.5 |
3 | Gain(Zenith) | 2dBi |
4 | Impedance | 50 Ω |
5 | Polarization | Linear |
1.4 Mechanical
Form 4
No. | Item | Specification |
1 | Cable | RG174 |
2 | Connector | SMA/SMB/MCX or others |
3 | Radome Material | ABS |
4 | Mounting | Screw |
