Home > Products > Panel Antenna > (Manufactory) 1710-2170MHz 3G Panel Antenna

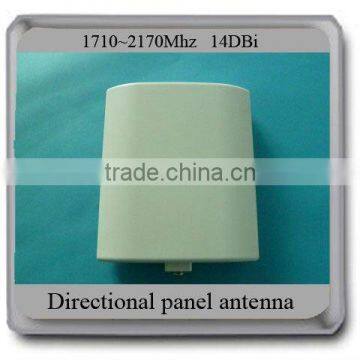

(Manufactory) 1710-2170MHz 3G Panel Antenna
Negotiable
/ Piece
10 Pieces(Min.Order)
- 10 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JIASHANJINCHANG | |
| Model Number | JCW1710-2170-14 |
Product Description
Specifications
Size:225*195*47mmFrequency:1710-2170MHz
Gain:14dBi
Connector:N Male or others
High Gain, Lower VSWR, Strongly Anti-inte
Directional Panel Antenna
Features
Good appearance
Durable, corrosion resistance
Full day for working ,waterproof
Optimized dimension
High Gain, Lower VSWR, Strongly Anti-interference
Application
3G System
Wireless telecommunication data Transmission system
Model NO | JCW-1710-2170-14 |
Electric Specification | |
Frequency rang-MHz | 1710-2170 |
Bandwidth -MHz | 460 |
Gain -dBi | 14 |
beam width -° | H 65 V 25 |
VSWR | ≤1.5 |
Input Impedance-Ω | 50 |
Polarization | Vertical |
Max power -W | 50 |
Lightning protection | DC ground |
Connector model | N Male or others |
Mechanical Specification | |
Size -mm | 225*195*47 |
Antenna weight-kg | 0.45 |
Working Temperature -°c | -40~60 |
Rated Wind Velocity-m/s | 60 |
Radome color | white |
Mounting way | hold in the pole |
