Home > Products > Parabolic/Fiberglass/Log-periodic/Ceiling Antenna > (Manufactory) 2.4G High Gain Grid Parabolic Antenna

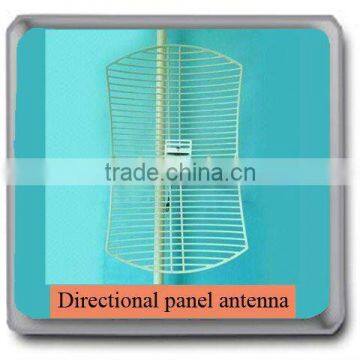

(Manufactory) 2.4G High Gain Grid Parabolic Antenna
US$ 5 - 20
/ Piece
10 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
(Manufactory) 2.4G High Gain Grid parabolic wifi antenna
-
(Manufactory) 2400-2483MHz outdoor Antenna
-
(Manufactory) Indoor Wall Mounted 3G GSM 800/900/1800/2100/2400MHz 12dbi Directional Panel Antenna
-
(Manufactory)806~2500MHz Directional Panel Antenna
-
(Manufactory) Directional Panel Antenna/panel antenna for gsm
-
(Manufactory) 1710MHz 2200MHz Directional Panel Antenna
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JIASHANJINCHANG | |
| Model Number | JCGR-2400-24 |
Product Description
Specifications
Size: 600*900mmFrequency:2400-2483MHz
Gain: 24dB
Connector: N-Type or Customized
High Gain
Directional Grid Parabolic Antenna
Features
High Gain, Larger F/B Ratio
Die cast aluminum reflector
UV stable coat finish
Optional installation H or V
Application
2.4G telecommunication system
Long-distance transmission
Wireless bridge
Model NO | JCGR-2400-24 |
Electric Specification | |
Frequency rang-MHz | 2400-2483 |
Bandwidth -MHz | 83 |
Gain -dBi | 24 |
beam width -° | H:14 V:10 |
-dB | ≥16 |
VSWR | ≤1.5 |
Input Impedance-Ω | 50 |
Polarization | Horizontal or Vertical |
Max power -W | 100 |
Lightning protection | DC ground |
Connector model | N-Type or Customized |
Mechanical Specification | |
Size -mm | 600*900 |
Cable length-m | 0.3 |
Antenna weight-kg | 3.2 |
Working Temperature -°c | -40~60 |
Rated Wind Velocity-m/s | 60 |
Clamp | U type |
Pole diameter -mm | Φ40~Φ50 |
