Free sample High quality car digital tv antenna

FOB Price

USD $2 - $4 / Piece

20 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Jinchang
Model Number	JCD717

Product Description

Specifications

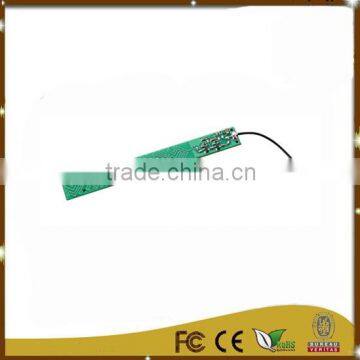

digital car tv antenna
SIZE: 125*22*10mm
Gain: 3dBi

Product Description

Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIASHANJINCHANG
Model Number: JCD717
Type: Indoor
Frequency Range: 174~237MHz/470-958MHz
Frequency: 174~237MHz/470-958MHz
Gain: 3 dB
type: digital tv antenna
1.Electrical Characteristics
1.1 Antenna
Form 1

No.
Item
Specifications
1
Frequency(MHz)
174~237MHz/470-958MHz
2
V.S.W.R(in BW )
≤2.0:1
3
Noise Figure
<3.0
4
Polarization
Linear
5
Impedance
50 Ω
6
Wave Band
DAB BⅢ/UHF 13~68CH

1.2 Mechanical
Form 2

No.
Item
Specification
1
Cable
RG174
2
PCB
FR4
3
Connector
MCX/SMA/FAKRA or others
4
Mounting Method
Adhesive

Advantages:

1.We have our own factory, offering dozens of antenna lines and over 20 R&D personnel.
2.We can make your own bespoke designs and samples to order.

3.We have an impressively quick reaction time to all your orders and requests, pre-production.
4. In Jinchang's R&D office, the Technical personnel to meet various requirements for you.
