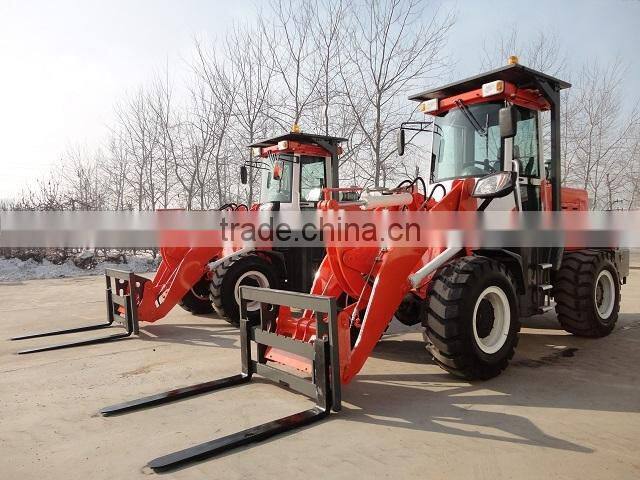

Hot Sale ZL20 Wheel Loader &forklift in North America
- QingDao Port
- T/T
You May Like
Product Details
| Condition | New | Brand Name | CASER | |
| Model Number | ZL20F | Place of Origin | Shandong, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 4480*1400*2200 | Certification | CE | |
| Warranty | One Year |
Product Description
Qingzhou Caser Trading Co.,LTD
High quality and low price
Parameter:
Model: ZL20F | ||
| Item | Parameters |
Performance | 1 .Rated Load | 2000 kg |
2. Total Weight | 6800 kg | |
3. Rated Bucket Capacity | 1.0 -1.7 m3 | |
4. Max. Tractive Force | 50.8 KN | |
5. Max. Breakout Force | ≥ 60.8 KN | |
6. Max. Gradeability | 38° | |
7. Dumping Height | 3300 mm | |
8. Dumping Reach | 1300 mm | |
9. Raising Time | ≤ 6.0 s | |
10. Total Cycle Time | ≤ 11.5 s | |
11. Overall Dimensions (L x W x H) | 5400*1950*2850 mm | |
12. Min. Turning Radius | 3300 mm | |
Engine | 13. Model | WEICHAI HUAFENG 4NRSG3/DONGFANGHONG YT4B2-24 /YUCHAI 4105 |
14. Type | Four-cylinder, Inline, Water-cooled, Four-stroke Engine | |
15. Rated Power | 60 kW/60 kW/62 kW | |
16. Rated Speed | 2400 rpm | |
17. Min. Fuel Consumption Ratio | ≤ 251.6 g/kW·h | |
Transmission | 18. Hydraulic Torque Converter | ZL280 Integrated Torque Converter |
19. Gear Shift | 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed | |
20. Max. Speed | 25 km/h | |
Drive Axle | 21. Model of Axle | ZL20 Hub Reduction Axle (big) |
22. Wheel Tread | 1600 mm | |
23. Wheel Base | 2440 mm | |
Drive | 24. Mode | 4-wheel Drive |
Hydraulic System | 25. System Working Pressure | 20 Pa |
26. Fuel Tank Capacity | 93 L | |
Brake System | 27. Service Brake | Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels |
28. Parking Brake | Flexible Shaft Controlled Disc Brake | |
Tyre | 29. Type Specification | 16/70-20 |
30. Front Tyre Pressure | 0.40 Mpa | |
31. Rear Tyre Pressure | 0.35 Mpa | |
