CASER WHEEL LOADER ZL635 WITH CE

FOB Price

US$ 24,000 - 30,000 / Unit

1 Unit(Min. Order)

Port QINGDAO CHINA
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	CASER
Model Number	ZL635	Place of Origin	China
Type	Front Loader	Moving Type	Wheel Loader
Dimension(Long * Breadth * High)	712024003200MM	Rated Load	3500KG
Certification	CE	Warranty	12 MONTHS
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

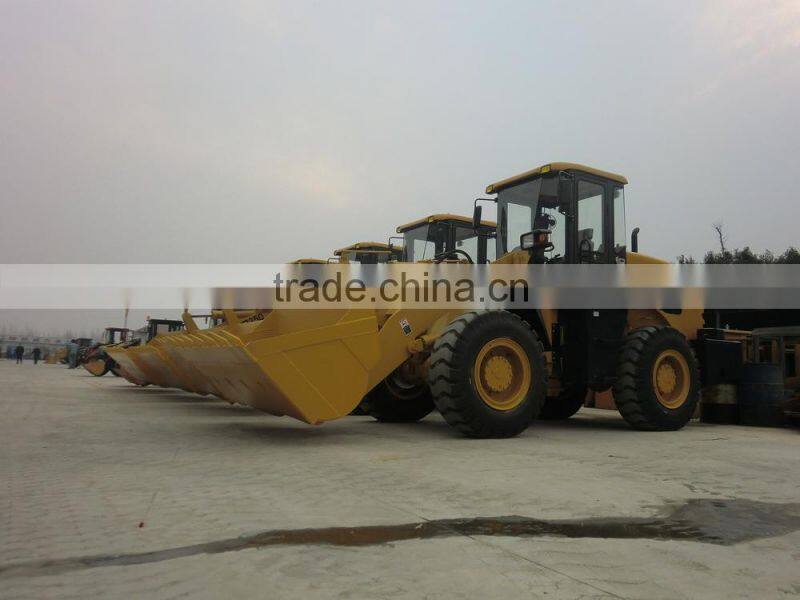

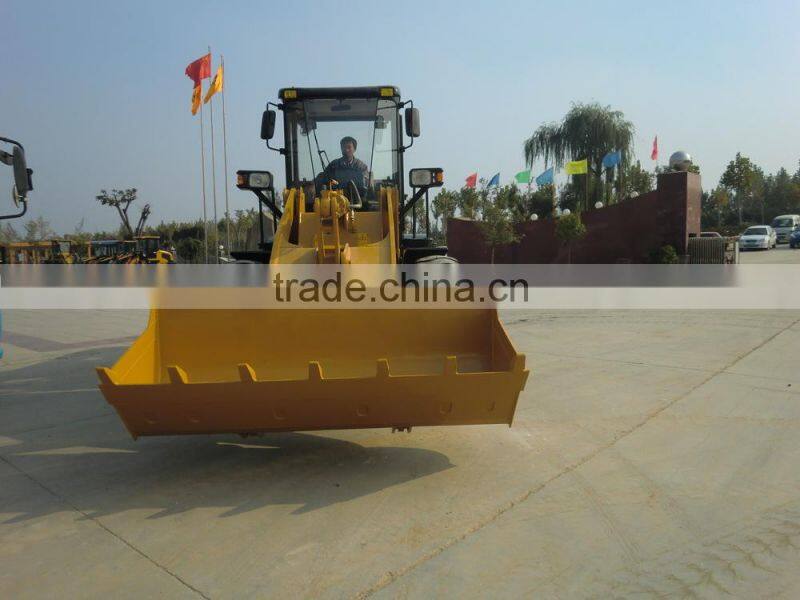

ZL635 WHEEL LOADER WITH CE

SPECIFICATIONS

Model	ZL635 WHEEL LOADER
Engine	Model:	Xichai CA6110/125G-DG10--CUMMINS 6BT9.6-C130
	Engine type:	In-line arrangement, water-cooled, four-cylinder diesel Engine
	Rated Power:	92KW (125HP)/ 97KW/130HP
	Rated Speed:	2200 R/MIN (RPM)
	Fuel consumption	Rated in standard working condition: 251.6g/kw.h
Transmission system	Type: Fixed-spindle Power shift
	Shift gear control oil pressure: 1373 ~1569MPa
	Rated input speed: 2200 (rpm)
Bucket	Bucket Capacity:	1.7 m3
	Bucket width:	1910mm
	Bucket type:	Heavy-duty bolt on teeth
	Max. Breakout Force:	120.6KN
	Rated Load:	3500kg
	Operating Weight:	9940kg
Overall Dimensions	Overall Length:	(Bucket on ground position): 7120mm
	Overall Height:	3120mm
	Ground to Cab Top:	2880mm
	Ground to exhaust pipe:	It is below from the top of cabin
	Dumping Height:	3110mm
	Overall Width:	2400mm
Operating Specifications	Drive Means:	Four-wheel drive
	Steering System	Articulated Frame with hydraulic power steering
	Min Turning Radius:	5600mm
	Driving System:	Hydraulic converter
Brake System	Service Brake:	Four Wheel Hydraulic disk brake
Brake System	Parking Brake:	Hand operated
Tyre	Model:	17.5-25
	Width:	41cm
	Diameter:	128cm
Wheelbase	2630mm
Track	1800mm

ZL635 wheel loader adopts Changchai Diesel Engine, which has strong horsepower, improved energy efficiency and low fuel consumption. The loader adopts hydrostatic and the hydraulic mechanical power gearshift transmission box, which can automatically adjust the output torque. The loader adopts the full hydraulic flow-enlarged steering system, which is flexible and easy to operate, small in its turning radius and stable in its performance. It designed and built to deliver exceptional performance and versatility, ease of operation and serviceability.

Their power, small size and versatility make the wheel loaders ideal for a wide variety of applications:landscaping, nurseries, residential construction, agriculture and industrial material handling, and recycling to name just a few.

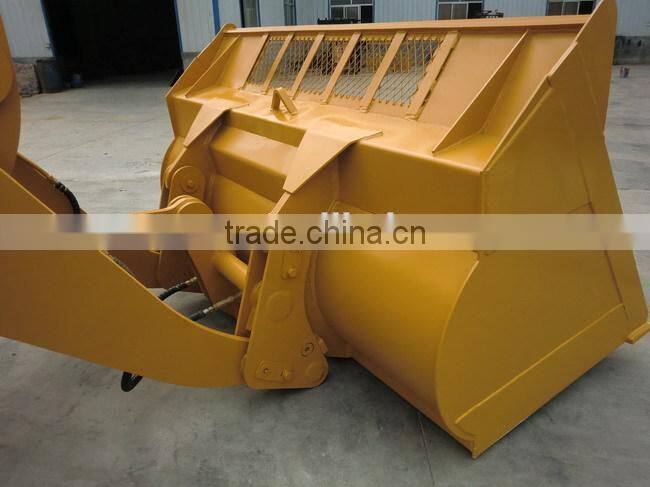

SNOW BUCKET

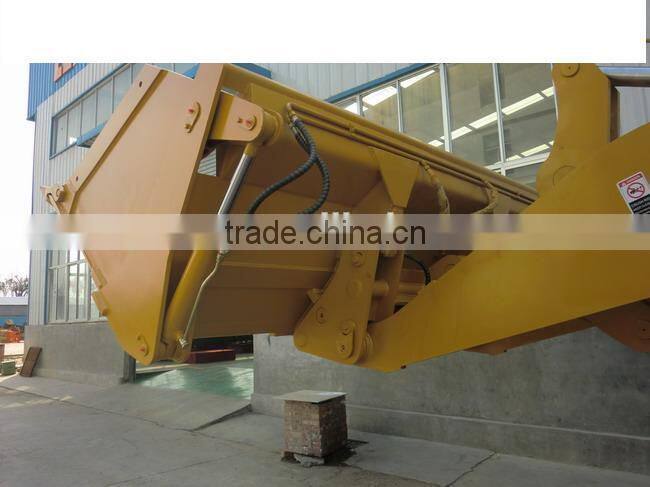

FOUR-IN-ONE BUCKET

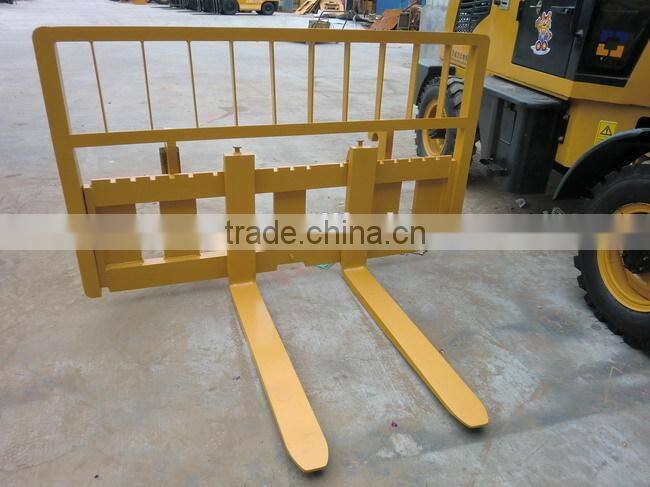

PALLET FORKS
