ZL30F-1 Wheel Loader 3 Ton With CE

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Model	ZL30 WHEEL LOADER
Engine	Model:		DEUTZ WP6G125E22 Turbo Diesel (EUROII Emission)
	Engine type:		In-line arrangement, water-cooled, six-cylinder turbo diesel Engine
	Rated Power:		92KW (125HP)
	Rated Speed:		2200 R/MIN (RPM)
	Fuel consumption		Rated in standard working condition: 251.6g/kw.h
Torque Converter And Transmission system	Model: YJ320B
	Type: Counter Shaft Power shift
	Gear: 4 Forward, 2 Reverse
	Max Travel Speed: 40.1km/h
	Hydraulic Oil Flow Pressure: 16.5MPa
	Shift gear control oil pressure: 1373 ~1569MPa
	Rated input speed: 2200 (rpm)
Bucket	Bucket Capacity:				1.7 m3
	Bucket width:				2440mm
	Bucket type:				Heavy-duty bolt on teeth
	Max. Breakout Force:				127KN
	Rated Load:				3000kg
	Operating Weight:				9700kg
Overall Dimensions	Overall Length:					(Bucket on ground position): 7120mm
	Overall Height:					(Ground to Cab Top)3290mm
	Ground to exhaust pipe:					It is below from the top of cabin
	Dumping Height:					3110mm
	Overall Width:					2400mm
Operating Specifications	Drive Means:						Four-wheel drive
	Steering System						Articulated Frame with hydraulic power steering
	Min Turning Radius:						5901mm
	Max Turning Radios						36°
	Driving System:						Hydraulic converter
Fuel Tank	Diesel Tank						137L
	Hydraulic Oil Tank						90L
Brake System	Service Brake:			Four Wheel Hydraulic disk brake
	Parking Brake:			Hand operated
Tyre	Model:	17.5-25
	Width:	41cm
	Diameter:	128cm
Wheelbase	2630mm
Track	1800mm

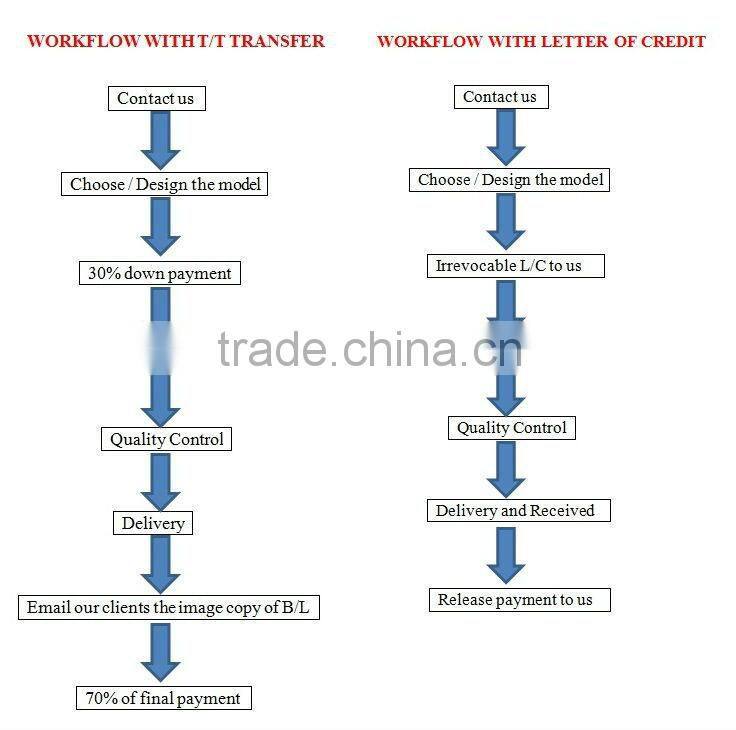

How to order
