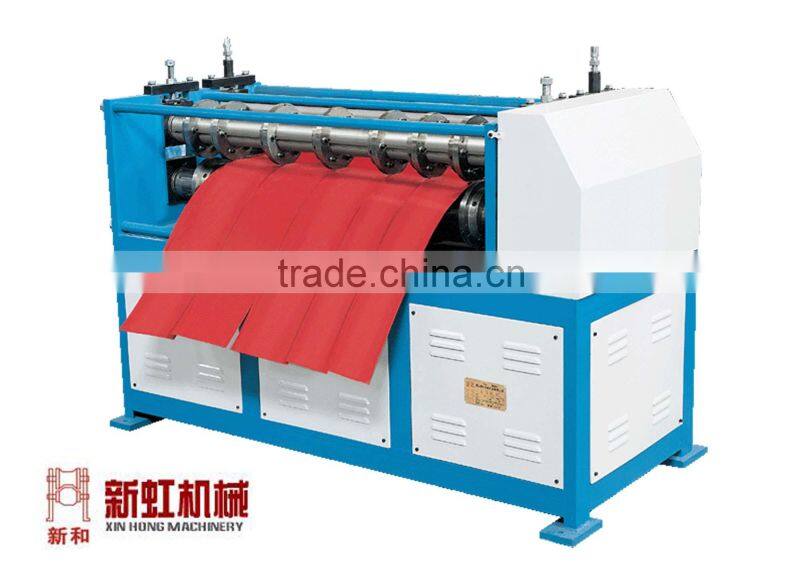

Simple Slitting Machine

Slitting machine

Slitting machine is pleasing in appearance, simple and elegant, sophisticated modeling chic, elegant taste and other characteristics. We can design different profile according to customer demand.

It is composed of coiling setting---hydraulic bearing---unloading dolly---hydraulic pneumatic system---electrical system.

1) Coiling setting

Hydraulic sizing Coiling Mandrel System,DC Motor,reducer,Separator,Cylinder,Push plate devices, etc.,Take-up shaft with steel 40Gr,The overall tone quality.

2) Hydraulic bearing

Supporting frame, bearing supporting rod, steering linkage, cylinder, etc.

On the take-up shaft play a supporting role in supporting.Rising through the fuel tank prop rod,Bearing Spindle End,Strengthen the spindle intensity,Ensure its stable operation .Discharge when the whereabouts of care under.

3)  Material unloading dolly

For the finished material discharge, main body of dolly, V shape lifting table, lifting pillar.

It is used for unloading material, it can move up and down, left and right, easy to put away the material coil from the recoiling machine. Its movement is drived by hydraulic or moter, horizonal speed: 6-7m/min.

4) Hydraulic Pneumatic system

From motors, pumps, hydraulic valves, tanks, cylinders, hydraulic lines, cylinder, gas line, valves, etc. The main hydraulic valve using Taiwan products, imported cylinder seals,To ensure stable and reliable unit.Other components of domestic brand-name manufacturers use product.

5) Electrical System
