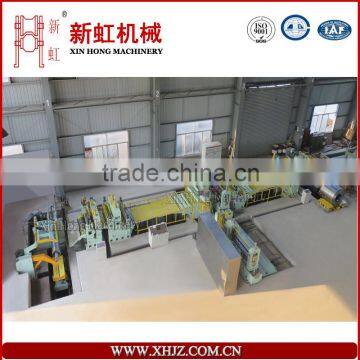

High Precision Color Coated Steel Coil Slitting Machine for Sale
- foshan guangzhou shenzhen
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | XHMACHINERY-steel coil slitting machine | Model Number | XH1400 | |
| Voltage | 380V | Rated Power | 750kw | |
| Dimension(L*W*H) | 1700*900*1400mm | Weight | 2000KG | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Precision Color Coated Steel Coil slitting machine for sale
- High quality machines and tooling to achieve high precision slitting quality.
- No marks no scratches on the material.
- High speed: max up to 250m/min
Features:
- Low operating costs
- High automation level to reduce non-productive times
- Flexibility from customer-specific arrangement and design
- Fully automatic strip threading systems
- Fully automatic coil peeler for over-payoff and under-payoff uncoilers
- Double slitters(optional), one slitter in production, the other in tool setting, interchanged after the production is finished, minimize the time for tool changing
- Fully automatic adjustment of edge scrap guiding, automatic scraps discharge
- Automatic clamping and unclamping of the cutting tools on the knife arbor
- Automatic strip strand transfer systems
- Special braking units for strips with high surface finish(optional)
Parameters Of This Line
Description | Technical Parameters | |||
Raw Material Parameters | Raw material | Color Coated Steel | ||
Thickness | 0.3~3.0mm | |||
Width | 400~1600mm | |||
Coil OD | ≤Φ1900mm | |||
Coil ID | Φ480mm~Φ520mm | |||
Coil Weight(Max) | 20Tons | |||
| ||||
Finished Product Parameters | Coil ID | Φ508mm | ||
Coil OD | ≤1900mm | |||
Coil Weight(Max) | Max:20T | |||
No. of Slit Strip | Thickness: 3.0mm≤10 strips | |||
Accuracy of Slit width | ±0.05mm | |||
Tolerance of Burr | ≤0.05mm | |||
Minimum Slit Width | 25mm | |||
Scraps width range | 2~5mm | |||
|
|
|
|
|
Parameters Of Other Configurations
Model | TX 0.14-1.5 | TX 0.3-2.5 | TX 0.3-3.0 | TX 0.5-4.0 | TX 1.0-6.0 |
Thickness(mm) | 0.14-1.5 | 0.3-2.5 | 0.3-3.0 | 0.5-4.0 | 1.0-6.0 |
Width(mm) | 500-1850 | 500-1850 | 500-1850 | 500-2000 | 500-2000 |
Line Speed(m/min) | 250 | 230 | 200 | 180 | 150 |
Coil Weight(ton) | 10,15,20 | 10,15,20 | 10,15,20 | 20,35 | 20,35 |
No. of Slit Strip | 35 | 30 | 20 | 15 | 10 |
Slitting Accuracy(mm/m) | <±0.10 | <±0.10 | <±0.10 | <±0.2 | <±0.2 |
Tolerance of Burr | <5% | <5% | <5% | <5% | <5% |
Recoiling Misalignment(mm) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
Recoiling Looseness(mm) | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
