High Quality Automatic Steel Coil Slitting Machine for Sale
- foshan guangzhou shenzhen shanghai ningbo qingdao tianjin xiamen zhongshan
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


High Production Capacity Coil Slitting Machine, Slitter Machine Steel Coil , Sheet Coil Slitting Machine
 -


High Speed Steel Coil Slitting Machine,steel Coil Slitting Line,coil Slitting Machine
 -


High Speed Stainless Steel Sheet Cutting Machine,steel Coil Slitting Machine,steel Coil Slitting Line
 -


Taiwan Standard High Precision Aluminum Steel Coil Slitting Machine
 -


High Production Capacity Steel Coil Slitter Machine Professional Manufacturer in China
 -


High Precision Color Coated Steel Coil Slitting Machine for Sale

Product Details
| Condition | New | Place of Origin | Guangdong, China | |
| Brand Name | XINHONG MACHINE-slitting line | Model Number | TX650 | |
| Voltage | 380V | Rated Power | 750kw | |
| Dimension(L*W*H) | Machine Model | Weight | 2000KG | |
| Certification | ISO9001 | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

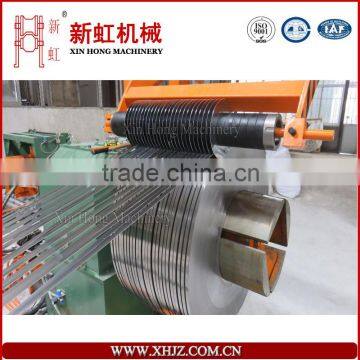

High Quality Automatic steel coil slitting machine for sale
Features:
l Low operating costs
l High automation level to reduce non-productive times
l Flexibility from customer-specific arrangement and design
l Fully automatic strip threading systems
l Fully automatic coil peeler for over-payoff and under-payoff uncoilers
l Double slitters(optional), one slitter in production, the other in tool setting, interchanged after the production is finished, minimize the time for tool changing
l Fully automatic adjustment of edge scrap guiding, automatic scraps discharge
l Automatic clamping and unclamping of the cutting tools on the knife arbor
l Automatic strip strand transfer systems
l Special braking units for strips with high surface finish(optional)
Parameters Of This Line
Description  | Technical Parameters  | |||
 Raw Material Parameters  | Raw material  | Stainless Steel  | ||
Thickness  | 0.3~3.0mm  | |||
Width  | 400~1600mm  | |||
Coil OD  | ≤Φ1900mm  | |||
Coil ID  | Φ480mm~Φ520mm  | |||
Coil Weight(Max)  | 20T  | |||
  | ||||

 Finished Product Parameters  | Coil ID  | Φ508mm  | ||
Coil OD  | ≤1900mm  | |||
Coil Weight(Max)  | Max:20T  | |||
No. of Slit Strip  | Thickness: 3.0mm≤10 strips  | |||
Accuracy of Slit width  | ±0.05mm  | |||
Tolerance of Burr  | ≤0.05mm  | |||
Minimum Slit Width  | 25mm  | |||
Scraps width range  | 2~5mm  | |||
  |
  |
  |
  |
  |
Parameters Of Other Configurations
Model  | TX 0.14-1.5  | TX 0.3-2.5  | TX 0.3-3.0  | TX 0.5-4.0  | TX 1.0-6.0  |
Thickness(mm)  | 0.14-1.5  | 0.3-2.5  | 0.3-3.0  | 0.5-4.0  | 1.0-6.0  |
Width(mm)  | 500-1850  | 500-1850  | 500-1850  | 500-2000  | 500-2000  |
Line Speed(m/min)  | 250  | 230  | 200  | 180  | 150  |
Coil Weight(ton)  | 10,15,20  | 10,15,20  | 10,15,20  | 20,35  | 20,35  |
No. of Slit Strip  | 35  | 30  | 20  | 15  | 10  |
Slitting Accuracy(mm/m)  | <±0.10  | <±0.10  | <±0.10  | <±0.2  | <±0.2  |
Tolerance of Burr  | <5%  | <5%  | <5%  | <5%  | <5%  |
Recoiling Misalignment(mm)  | ≤1  | ≤1  | ≤1  | ≤1  | ≤1  |
Recoiling Looseness(mm)  | ≤2  | ≤2  | ≤2  | ≤2  | ≤2  |

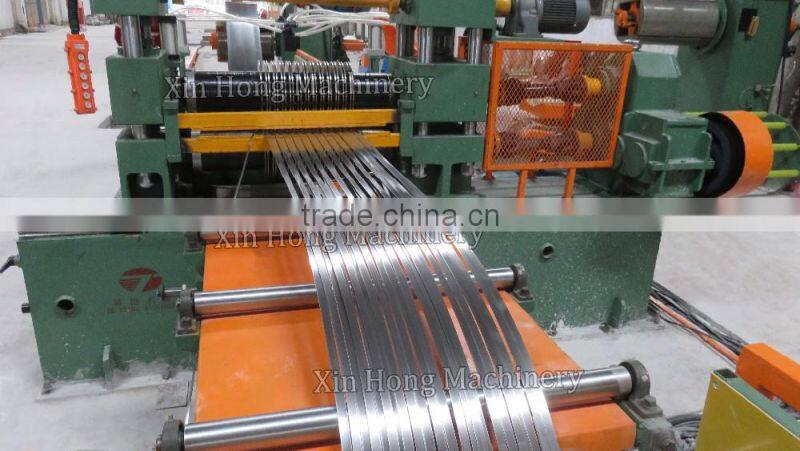

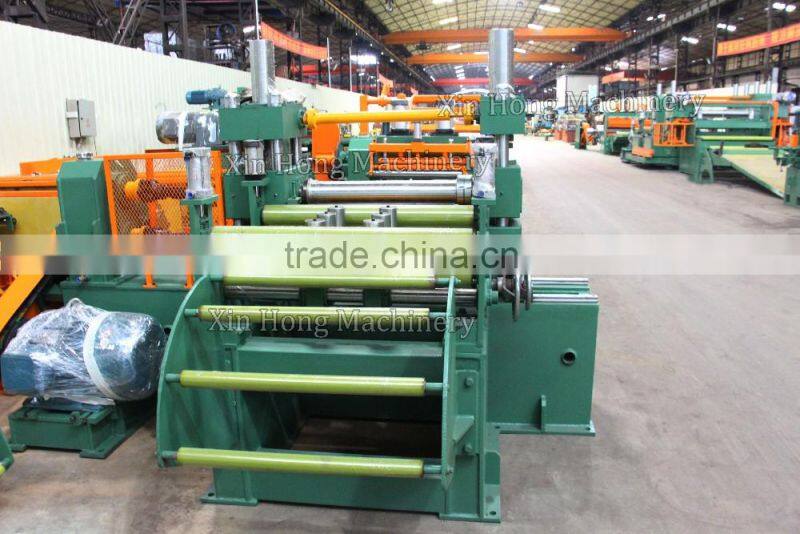

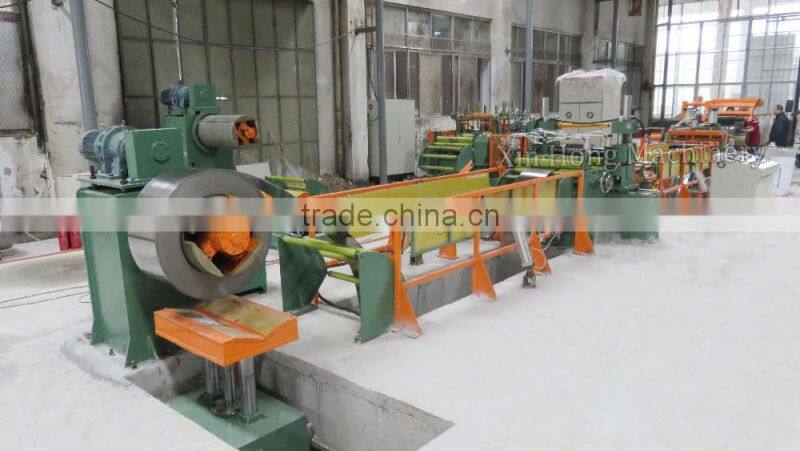

slitting line
coil loading car

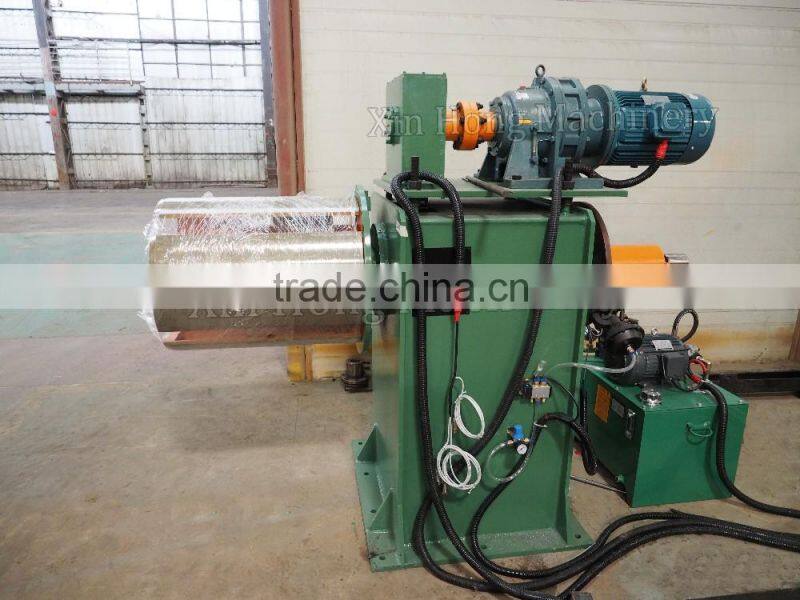

decoiler

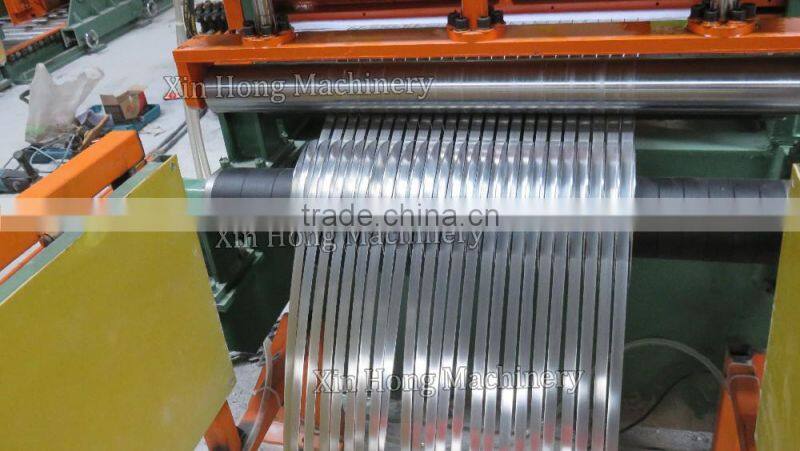

slitter

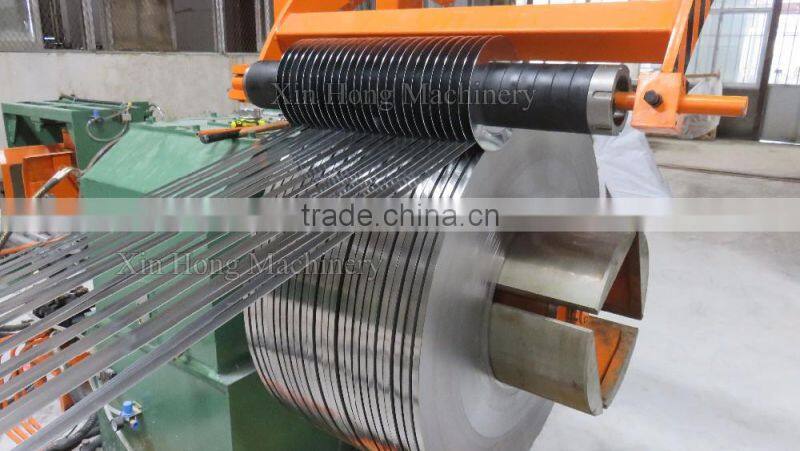

recoiler
 Electrical panel shipped should be sea worthy packing and treated by anti-rust,
the cargo shall be properly packed in seaworthy packing to the specific items.
The other equipment are naked shall be strong enough to withstand long distance oceanic transportation and multiple handling. Waterproof material shall be adopted where ever it is necessary to protect the cargo from moisture, rain and sea water.

patents

For more details,please Contact me
