DVB TS Multiplexer
- Chengdu
- Credit Card
You May Like
-
4in1 DVB-T2 IP Multicast MPTS IRD(4 DVB-C RF In,4*CI,4 ASI+IP 4*MPTS*multicast Out)
-
4in1 ASI MUX-Scrambler QAM Modulator(5 ASI IN,4 RF Out)/4 Channel ASI MUX-Scrambler Modulator
-
SC-4111 DVB 2 Asi Input Qam Modulator (with MUX/multiplexer)
-
SC-4111 2 Asi Input and RF Output Qam Modulator Catv Headend With Multiplexer
-
SC-4111 QAM Modulator With Multiplexer (2ASI In, RF Out)
-
SC-4111 2 ASI IN RF OUT/QAM Modulator Multiplexer
Product Details
| Place of Origin | Sichuan, China | Brand Name | Sochuang | |
| Model Number | SC-2102 |
Product Description
Overview:

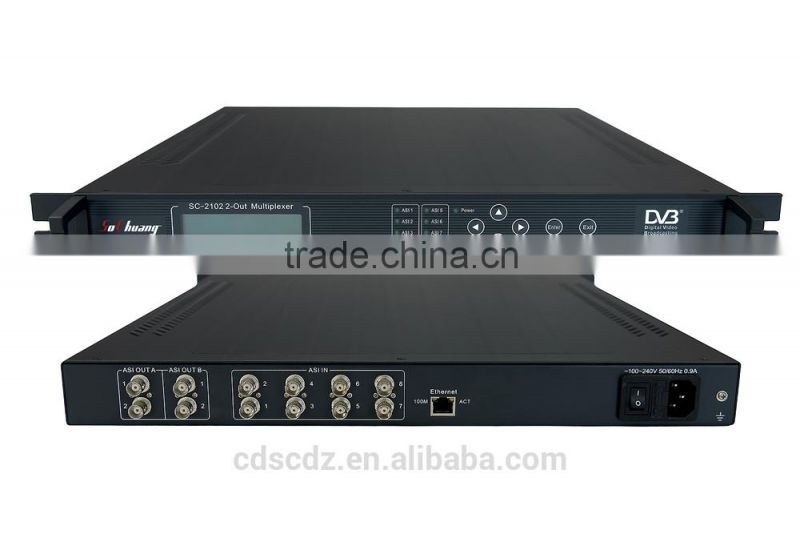

2-OUT TS multiplexer is a digital broadcasting TS stream re-multiplexer. It muxplex 8 channel input ASI programs and output two separated MPTS TS stream, and user can select or filter the programs PIDs, or passthrough the special PIDs.
Features:
. Comply with ISO13818 and EN300 468 standards;
. Support IP data injection;
. Support program sorting;
. Generate SPI / SI information;
. Support PCR correction and PID re-mapping;
. 8M bytes caches, anti-burst stream;
. Support PSI editing functions;
. Each channel can choose 128 PID;
. Can insert data, reuse and transmission a variety of data;
. Alarm function;
. Support cascading among multiple devices;
. Enables centralized network management, support network remote upgrade feature;
. LCD display in Chinese and English, easy and flexible to operate;
. High reliability design, stable operation.
. 2 separate ASI output (two different MPTS stream).
Technical Specification:
Input | ASI | 8 BNC | |
Packet Format | 188/204,Automatic detection | ||
Re-multiplexing | MPEG-2 stream re-multiplexing | ||
PID Passthrough | |||
PID Filter | |||
PCR Correction | |||
PSI/SI Edit | |||
Control | NMS(Ethernet Port,RJ-45), Keyboard+LCD | ||
Backplane Bandwidth | 800mbps | ||
Output | ASI | 4 BNC (two separate MPTS) | |
ASI Monitor | Program quantity, bit-rate, lock status | ||
PID | PID Range | 0000-1FFF | |
arbitrary PID VPN | Can realize an arbitrary PID VPN and mapping | ||
Max PID/channel | 128 | ||
General Features | Size | 44mm*482mm*410mm | |
Environment | 0~45(Operating);-20~80(Storage) | ||
Power | 100-240VAC±10%,50Hz,25W | ||
3 years warranty, life time maintanence, technical support, OEM.
Chengdu Sochuang Electronics Co.,Ltd. welcome to visit our website:
Any question, please add me Skype ID: jackpeng2000.
