5dB/6dB/7dB/10dB/15dB/20dB/25dB/30dB/ 800-2700MHZ RF directional coupler
Negotiable
/ Piece
5000 Pieces(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxing | |
| Model Number | 800-2700NHZ |
Product Description
5dB/6dB/7dB/10dB/15dB/20dB/25dB/30dB/ 800-2700MHZ RF directional coupler
1. technical specification
| 800 - 2700MHz N-Female Cavity Directional Coupler | |||||||||
| Coupling(dB) | 5 | 6 | 7 | 8 | 10 | 15 | 20 | 25 | 30 |
| In-band Ripple(dB) | ±0.8 | ±0.8 | ±0.8 | ±0.8 | ±1.0 | ±1.0 | ±1.0 | ±1.0 | ±1.0 |
| VSWR | ≤1.25 | ||||||||
| Insertion Loss(dB) | ≤2.0 | ≤1.6 | ≤1.35 | ≤1.1 | ≤0.7 | ≤0.4 | ≤0.3 | ≤0.2 | ≤0.2 |
| Isolation(dB) | ≥25 | ≥26 | ≥27 | ≥28 | ≥30 | ≥35 | ≥40 | ≥45 | ≥50 |
| PIM3(dBc) | ≤-140@ + 43dBmx2 | ||||||||
| Impedance(Ω) | 50 | ||||||||
| Power Rating(W) | 200 | ||||||||
| Connector | N-F | ||||||||
| Application | Indoor | ||||||||
| Temperature Range(°C) | -30~+70 | ||||||||

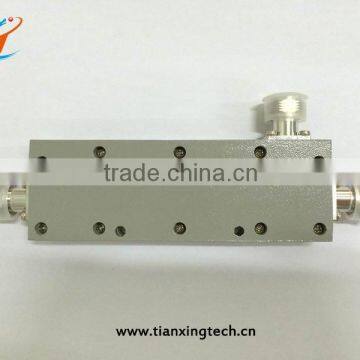

2. Product show
3. Factory bulding
Company Information
4. shipment
Packaging & Shipping
1. packing: the packing are according to your instruction.
2. shipping: the sample will be arranged within 7 days, and the order shippment will be arranged according to the quatity.
