Home > Products > FBT coupler > Fibra optica coupler 1:2 SC APC 9/125 simplex 900um loose

Fibra optica coupler 1:2 SC APC 9/125 simplex 900um loose

FOB Price

US$ 1 - 3 / Piece

500 Pieces(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	tianxing
Model Number	Fibra optica coupler 1x2

Product Description

Fibra optica coupler 1:2 SC APC 9/125 simplex 900um loose

1. Feature

1).Low Insertion loss

2).Low PDL

3).Compact Design

4).Good channel-to-channel uniformity

5).Wide Operating Wavelength: 1260-1650nm

6).Wide Operating Temperature: -40°C - 85°C

7).High Reliability and Stability

2. Application

1).FTTX Systems

2).PON Networks

3).CATV Links

4).Optical Signal Distribution

3. Technical specification:

Parameter		1x2
Operating Wavelength (nm)		1310/1550
Operating bandwidth (nm)		±40
Grade		P	A
Insert Loss (dB) Coupling ratio:	1/99	≤22.5/0.25	≤23.5/0.35
	2/98	≤18.8/0.3	≤19.5/0.4
	3/97	≤17.0/0.35	≤17.8/0.45
	5/95	≤14.6/0.4	≤15.5/0.5
	10/90	≤11.2/0.75	≤12.0/0.8
	20/80	≤7.9/1.3	≤8.4/1.4
	30/70	≤6.0/1.9	≤6.3/2.1
	40/60	≤4.7/2.7	≤4.9/2.9
	50/50	≤3.6	≤3.8
Excess Loss(dB)		0.07	0.1
PDL(dB)		≤0.15	≤0.20
Return Loss(dB)		>50
Directivity(dB)		≥55
Operating Temperature(ºC)		-40~85
Storage Temperature(ºC)		-40~85
Connector		SC, FC, LC or customerized
Notes: The values are all tested at +23ºC without connectors.

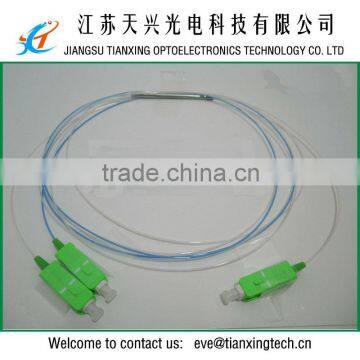

4. Product show

5. Different types

6. Workshop

7. shipment

Packaging & Shipping

8. Why choose us:

Tianxingtech was founded in 2010, but we have a experienced team in this field which speciallized in optical products, especially for PLC splitters and fiber optic patch cords. We promise to provide the best service, qualified products and competitive price for you.

a. We imported high precision equipments from Japan.

b. For the ceramic ferrules, we buy from CCTC; and the fiber, we buy from corning and tyco.

c. We make the FA ourselves, and we can control costs effectively.

d. Fast shipment: Generally, according to the quatity, we make the delivery within 3-10 working days, and if you are uragent for the products, just let me know, and we will try to ahead the diliver date.

e. You can choose any express you are available, such as DHL, FedEx, UPS, we have a long-time cooperation with these express, and we can get the best discount from them, so, I am sure we can offer you the cheaper shiping cost.

9. Contact us

Sales: Eve Yao

Skype: trade. eve

web:

Tel: 86 511 83565358

Fax: 86 511 83565357

we sincerely hope to expand the cooperation with all the customers both at home and overseas,Each member of our term is dedicated to excellence and encouraged to be creative and to take the initiative.above all we strive to service your requirements in such a way that you,our partner will feel nice about doing business with us, we are looking forward to geting any requirement from you.
