Home > Products > fiber optic adapter > ST UPC simplex optical adapter
ST UPC simplex optical adapter
- 200000 Piece / Pieces per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxingtech | |
| Model Number | ST SX, SC |
Product Description
ST UPC simplex optical adapter
1. Features:
---Low insertion loss and back reflection loss
---Ferrule end surface pre-domed
---Precision anti-rotation key and corrosion resistant body
---Telcordia style boots
---Free-floating ceramic ferrule
---Zirconia sleeves or Phosphor bronze sleeves
2. Applications:
---Fiber Optic Telecommunications
---LAN (Local Area Network)
---FTTH (Fiber To The Home)
---CATV&CCTV System
---High speed transmission systems
---Fiber optic sensing
---Industtial, Mechanical and Military
3. Technical specification:
| Connector Type | FC, SC, ST, LC, MU, DIN, D4, etc | ||||
| SM | MM | ||||
| Operating Wavelength | 1310nm & 1550nm | 850nm&1300nm | |||
| Characteristic | Typical Insertion Loss | ≤0.20dB | ≤0.3dB | ||
| Typical Return Loss | PC≥45.0dB | UPC≥50.0dB | APC≥65.0dB | ≥45.0dB | |
| Mechanical Testing | Repeatability | ≤0.20dB | |||
| Exchangeability | ≤0.20dB | ||||
| Durability | >1000 (Times), typical≤0.20dB | ||||
| Temperature | Storage Temperature | -50°C ~ +85°C | |||
| Operating Temperature | -40°C ~ +75°C | ||||
| Tensile Force | ≥100N | ||||

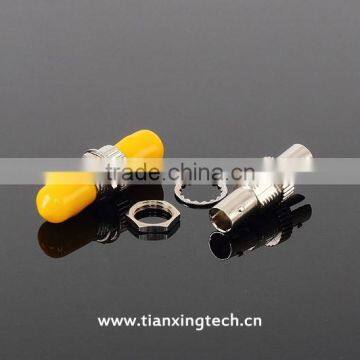

4. Product show
5. Factory bulding
6. shipment
1. packing: we are fallowing your instructions on packing
2. shipping: the sample will be arranged within 7 days if you need, and the order shippment will be arranged according to the quatity.
