PCE-830 power anlayser
Negotiable
1 (Min.Order)
- 0 per Month
You May Like
Product Details
| Place of Origin | Spain | Brand Name | PCE | |
| Model Number | PCE-830 |
Product Description
Specifications

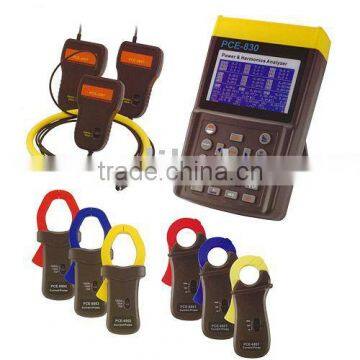

3 phases, measures power and analyses harmonics, with memory, interface and sofwareThe PCE-830 power and harmonics analyser is used for measuring one to three phases of electrical quantities for alternating current (AC). This power and harmonics analyser also measures such parameters as voltage, current, frequency, hrmonics and power as well as indicting, according to standard EN50160, harmonic values, interharmonics and asymmetrics. Interference, such as interruptions, leaks, overloads or transience (from 16µs) are detected with their corresponding values. The backlit LCD, with high resolution, can show up to 35 parameters simultaneously. It can have up to 3 clips attached at the same time. In data logger mode, it can save up to 17,470 readings (3 phases / 4 conductors), in a simpler set up (1 fase / 2 conductores) it can save up to 52,400 readings, split into 85 groups. All this makes the PCE-830 power analyser the ideal instrument for taking measurements over long durations.
| Measurement values | Measurement ranges / resolution / accuracy |
| PCE-830 + PCE-6801 Watts AC (50 or 60Hz, PF 0.5 up to 1) | 5.0 to 999.9W / 0.1W / ±1% ±0.8W 1.000 to 9.999kW / 0.001kW / ±1% ±8W 10.00 to 99.99kW / 0.01kW / ±1% ±80W 100.0 to 999.9kW / 0.1kW / ±1% ±0.8kW 1000 to 9999kW / 1kW / ±1% ±8kW |
| PCE-830 + PCE-6802 Watts AC (50 or 60Hz, PF 0.5 up to 1) | 5.0 to 999.9W / 0.1W / ±1% ±0.8W 1.000 to 9.999kW / 0.001kW / ±1% ±8W 10.00 to 99.99kW / 0.01kW / ±1% ±80W 100.0 to 999.9kW / 0.1kW / ±1% ±0.8kW 1000 to 9999kW / 1kW / ±1% ±8kW 0.000 to 9.999MW / 0.001MW / ±1% ±80kW |
| PCE-830 + PCE-3007 Watts AC (50 or 60Hz, PF 0.5 up to 1) | 10.0 to 999.9W / 0.1W / ±1% of measurement range 1.000 to 9.999kW / 0.001kW / ±1% of measurement range 10.00 to 99.99kW / 0.01kW / ±1% of measurement range 100.0 to 999.9kW / 0.1kW / ±1% of measurement range 1000 to 9999kW / 1kW / ±1% of measurement range |
| PCE-830 + PCE-6801 Current AC (50 or 60Hz, auto range select, TRMS) | 0.04A to 1A / 0.001A / ±0.5% ±0.05A 0.4A to 10.0A / 0.01A / ±0.5% ±0.05A 4A to 100.0A / 0.1A / ±1.0% ±0.5A |
| PCE-830 + PCE-6802 Current AC (50 or 60Hz, auto range select, TRMS) | 10.00A / 0.01A / 4A to 100.0A / 0.01A / ±0.5% ±0.5A 40A to 1000.0A / 0.1A / ±0.5% ±5A |
| PCE-830 + PCE-3007 Current AC (50 or 60Hz, auto range select, TRMS) | 0 to 300A / 0.1A / ±1.0% of measurement range 300.0 to 999.9A / 0.1A / ±1.0% of measurement range 1000 to 3000A / 1A / ±1.0% of measurement range |
| PCE-830 + PCE-6801 Harmonics of AC current in % | 1 to 20º / 0.1% / ±0.2% of reading ±1.0% 11 to 20º / 0.1% / ±2% of reading ±1.0% 21 to 50º (A)/ 0.1% / ±5% of reading ±1.0% 21 to 50º (mA)/ 0.1% / ±10% of reading ±1.0% 51 to 99º / 0.1% / ±35% of reading ±1.0% |
| PCE-830 + PCE-6802 Harmonics of AC current in % | 1 to 10º / 0.1% / ±2% 21 to 49º / 0.1% / 4% of reading ±2.0% 50 to 99º / 0.1% / 6% of reading ±2.0% |
| PCE-830 + PCE-3007 Harmonics of AC current in % | 1 to 10º / 0.1% / ±2% 21 to 49º / 0.1% / ±6% 50 to 99º / 0.1% / ±10% |
| PCE-830 + PCE6801 / PCE-830 + PCE-6802 Power Factor (PF) | 0.00 to 1.00 / 0.01 / ±0.04 |
| PCE-830 + PCE3007 Power Factor (PF) | 0.000 to 1.000 / 0.001 / ±0.04 |
| PCE-830 + PCE6801 / PCE-830 + PCE-6802 Phase angle (Phi) | -180° to 180° / 0.1° / ±1° |
| PCE-830 + PCE3007 Phase angle (Phi) | 0° to 180° / 0.1° / ±2° |
| PCE-830 + PCE-6801 Total harmonic distortion | 0.0 to 20.0% / 0.1% / ±1% 20.0 to 100% / 0.1% / ±3% of reading ±5% 100 to 999.9% / 0.1% / ±10% of reading ±10% |
| PCE-830 + PCE-6802 Total harmonic distortion | 0.0 to 20.0% / 0.1% / ±2% 20.0 to 100% / 0.1% / ±6% of reading ±1% 100 to 999.9% / 0.1% / ±10% of reading ±1% |
| PCE-830 + PCE-3007 Total harmonic distortion | 0.0 to 20.0% / 0.1% / ±2% 20.0 to 100% / 0.1% / ±6% of reading ±1% 100 to 999.9% / 0.1% / ±10% of reading ±1% |
