Fiberscope PCE-VE 500
- 0 per Month
You May Like
Product Details
| Place of Origin | Spain | Brand Name | PCE | |
| Model Number | PCE-VE 500 |
Product Description
Specifications

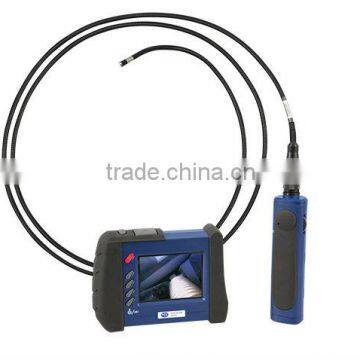

Wireless Fiberscope PCE-VE 500(useful length 1 / 2 m) LED illumination / memory function / for the inspection of machine
Technical Specifications
| |
Flexible cable length | 2000 mm |
Cable type | flexible |
Cable diameter | 5,5 mm |
Viewing field / angle | horizontal 46º |
Image sensor | CMOS |
Minimum illumination | 0 lx |
Size of the display | 3,5 " TFT-LCD |
Pixels | 640 x 480 |
Video | PAL / NTSC |
Video connection | AV-out |
Transmitting frequency | 2,4 GHz 4 channels |
Picture aspect ratio | JPEG |
Compression format | MPEG4 |
Image frequency | 30 / s |
Memory | 1 Gb (SD memory card), open-ended to 2 Gb
|
Vision distance | 1 ... 6 cm |
Light source | LED |
Operating / storage temperature | -20 ... 60 ºC |
Powered | support (3.7 V accumulator)
|
Dimensions | support 140 x 35 x 32 mm
|
Weight | support 220 g
|
