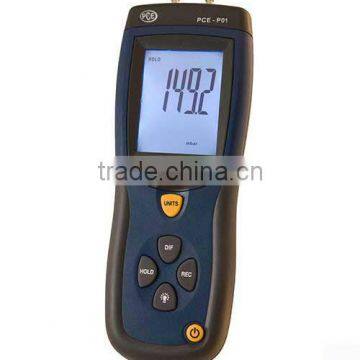

Differential Pressure Gauge PCE-P01
- 0 per Month
You May Like
Product Details
| Place of Origin | Spain | Brand Name | PCE | |
| Model Number | PCE-P01 |
Product Description
Specifications
differential Pressure Gauge with a measuring range from -137 to +137mbar (PCE-P01)Technical data of the differential Pressure Gauge | |
Measuring range | PCE-P01 |
inH2O | 55,40 |
psi | 2,000 |
mbar | 137,8 |
kPa | 13,79 |
inHg | 4,072 |
mmHg | 103,4 |
ozin² | 32,00 |
ftH2O | 4,612 |
cmH2O | 140,6 |
kgcm² | 0,140 |
bar | 0,137 |
Resolution | |
inH2O | 0,01 |
psi | 0,001 |
mbar | 0,1 |
kPa | 0,01 |
inHg | 0,001 |
mmHg | 0,1 |
ozin² | 0,01 |
ftH2O | 0,001 |
cmH2O | 0,1 |
kgcm² | 0,001 |
bar | 0,001 |
Maximum load | 689 mbar |
Accuracy (at 25 °C) | ±0,3 % |
Linearity | ±0,2 % |
Response time | approx. 0,5 sec. |
Operating temperature | +0 ...+50 °C |
Storage temperature | -10 ... +60 °C |
Medium | CO2 and non-explosive gases |
Saving interval | 1 sec ... 24 h adjustable |
Display | Dual-LCD |
Dimensions | 210 x 75 x 50 mm (H x W x D) |
Weight (excluding batteries) | 650 g |
Power supply | Battery: 1 x 9 V monobloc battery |
