Wholesale DC 1000V thunder-proof shoals combiner box
- Shanghai;Ningbo;Shenzhen
- T/T Credit Card
You May Like
-
IP65 GOLDEN SUN solar combiner box manufacturers in india
-
KAYAL Standard DC 1000V solar energy box
-
Made in China DC 1000V IP65 solar array junction box
-
OEM Customized Widely Used thunder-proof string monitoring box
-
KAYAL OEM Made in China string monitoring box
-
OEM Made in China Wholesale solar string combiner box
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAYAL | |

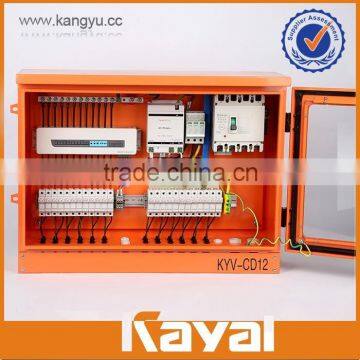

| Model Number | KYV-CD12 | Type | Other, Other, 4 6 8 10 12 14 16 21 24Ways |
Product Description
| Magnetic Starter | Circuit Breaker | ELCB RCCB | Relay | AC contactor |
| MODEL | KYV-CD | ||
| PV arrays input number | <=24 | ||
| Maximum current per string | <=20A | ||
| Communication port | RS485 | ||
| Power supply | 220V AC or 300-1000V DC self power supply(selectabel) | ||
| Environment temp | -40℃~+85℃ (-40℉-185℉) | ||
| Dimensions(W*H*D) | 8-10Strings : 630mm*450mm*180mm | ||
| 11-14strings: 720*450mm*180mm | |||
| 15-16strings:800m*450*180mm | |||
| Weight | 10-32KG | ||
| Features |
| 1. Support lightning protection |
| 2. Support short circuit protection |
| 3. Support ground protection |
| 4. Support current, voltage and temperature monitoring of PV arrays |
| 5. Support fault alarm and location of cells |
| 6. Support fault alarm and location of fuse |
| 7. Support remote SCADA system diagnosis of PV arrays |
General
In the solar power system, PV combiner box collects number of PV arrays input and send the output to DC power distribution cabinet/invert.The wiring between the PV arrays and inverter is greatly simplified by the combiner box.To improve the reliability and practicability,KYV-CD combiner box is installed with PV specialized protection device, fuse and circuit breaker for each PV array input.The running states of the PV arrays can be conveniently get by the users. The system is carried out at the most efficient.B side of the normal type, KYV-CD includes intelligence combiner box installed with PV array monitor.The intelligence combiner box monitors the currentoutput voltage of the PV arrays, and running states of the components in the cabinet. According to the type of PV array monitor, theintelligence combiner box can collect maximum 24strings of circuit input. 8/10/12/16 strings are the most common specifications.With the advantages of simply wiring and reasonable distribution, the equipment maintenance is easy. It is wall-mount installation, suitable for any harshenviroment.Besides of the standard dimensions and material,the combiner box is customized |
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Contact Us
- Wenzhou Kangyu Electrical Co., Ltd.
- Contact namenanshuan ni Chat Now
- Phone86-577-62729766
- AddressNo. 136-138, Xinguang Road, Xinguang Industrial Zone, Liushi Town
