XLamp ML_C, Original cree led diode

FOB Price

US$ 0.25 - 0.3 / Piece

1000 Pieces(Min. Order)

Port HongKong or Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Original CREE
Model Number	ML_C	Type	LED
Package Type	Surface Mount	Max. Forward Voltage	6.4v
Max. Reverse Voltage	5v	Max. Forward Current	350MA
Max. Reverse Current	10uA

Product Description

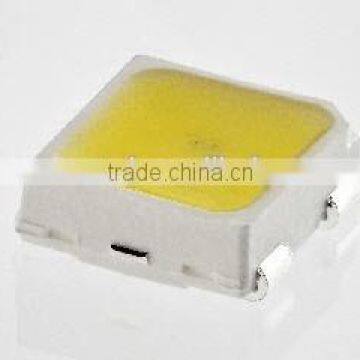

XLamp ML-C

Versatile, Mid-Power, Lighting-Class LED

The Cree XLamp ML-C LED brings lighting-class performance to 1/3-watt LEDs and continues Cree's history of leading-edge innovation in LEDs for lighting applications. The XLamp ML-C LED brings high performance and a smooth look to a wide range of lighting applications, including linear lighting, LED replacement lamps, fluorescent retrofits and retail-display lighting. The ML-C LED is available in parallel, series, high-CRI and color options. With a typical forward voltage of 6.4 V at 50 mA, ML-C series LEDs provide a high-voltage option that can enable a driver that is cheaper, more efficient and smaller in size to lower system cost. The minimum-80, 85 and 90 CRI ML-C LEDs enable customers to address applications, such as retail and restaurant lighting, where high CRI is required.

SPECIFICATIONS:

Size	3.5 x 3.4 x 1.2 mm
Product Options	Parallel Series Color
Maximum Drive Current	0.350 A (paralllel) 0.175 A (series)
Maximum Power	0.3 W
Light Output	28 lm @ 0.25 W
Typical Forward Voltage	3.2 V @ 100 mA (parallel) 6.4 V White @ 50 mA (series)
Viewing Angle	120 °
Binning	ANSI
Thermal Resistance	13 °C/W
Reflow Solderable	Yes - JEDEC J-STD-020C-compatible
RoHS Compliant	Yes
REACH compliant	Yes
Package Size	3.50 x 3.50 mm
