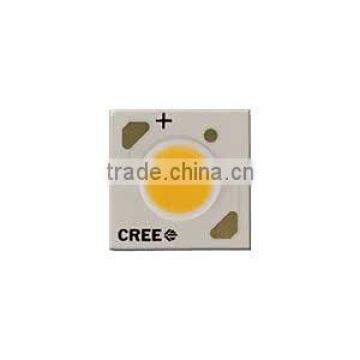

XLamp CXA 1304, Original CREE COB 1304 led chips

FOB Price

US$ 1.26 - 1.76 / Piece

100 Pieces(Min. Order)

Port Hong Kong or Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Original CREE
Model Number	CXA1304	Type	LED
Package Type	Surface Mount	Max. Forward Voltage	42v
Max. Reverse Voltage	standard	Max. Forward Current	1000MA
Max. Reverse Current	0.1MA

Product Description

XLamp CXA1304

High lumen output and efficacy from a compact, easy-to-use LED array

The new XLamp CXA1304 LED Array is the most compact member of the CXA family, delivering up to 1034 lumens in a 6-mm optical-source size and enables lighting manufacturers to rapidly address small-form-factor lighting applications. The XLamp CXA1304 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA1304 LED Array can enable system-level performance of 250 to 800 lumens.

SPECIFICATIONS:

Size	13.35 x 13.35 mm
Product Options	9 V 18 V 36 V High-CRI
Maximum Drive Current	1.0 A (9 V) 0.5 A (18 V) 0.25 A (36 V)
Maximum Power	10.9 W
Light Output Range	300 - 1000 lm
Light Emitting Surface (LES)	6 mm
Viewing Angle	115 °
Binning	85°C ANSI (White) 2- and 4-Step EasyWhite®
RoHS Compliant	Yes
REACH compliant	Yes
UL recognized	Yes - Level 4 Enclosure Consideration
Package Size	13.35 x 13.35 mm

For more details, pls contact us, or visit: /LED-Components-and-Modules/Products/XLamp/Arrays-NonDirectional/XLamp-CXA1304
