CREE CXA 2530, Original CREE COB led chips

FOB Price

USD $6.56 - $7.56 / Piece

100 Pieces(Min.Order)

Port Hong Kong or Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	CREE
Model Number	CXA2530	Type	LED
Package Type	Surface Mount	Max. Forward Voltage	42
Max. Reverse Voltage	standard	Max. Forward Current	1600MA
Max. Reverse Current	0.1MA

Product Description

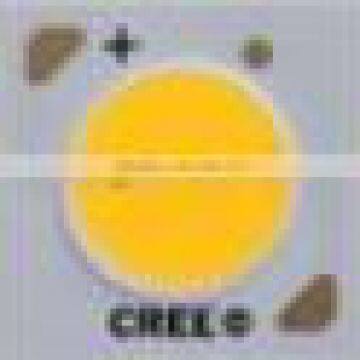

XLamp CXA2530

High lumen output and efficacy from a single, easy-to-use LED array

The XLamp CXA2530 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA2530 LED Array can deliver system-level performance of 2000 to 5000 lumens, enabling applications that traditionally use halogen, ceramic metal halide and compact fluorescent technology.

SPECIFICATIONS:

Size	23.85 x 23.85 mm
Product Options	High-CRI
Maximum Drive Current	1.6 A
Maximum Power	65 W
Light Output Range	3000 - 5700 lm
Light Emitting Surface (LES)	19 mm
Typical Forward Voltage	36.4 V @ 0.80 A (85°C)
Viewing Angle	115 °
Binning	85°C ANSI (White) 2- and 4-Step EasyWhite®
RoHS Compliant	Yes
REACH compliant	Yes
UL recognized	Yes - Level 4 Enclosure Consideration
Package Size	23.85 x 23.85 mm

MORE DETAILS:
