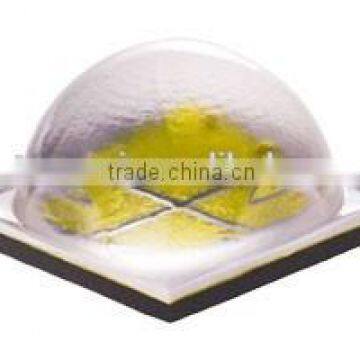

XLamp XHP70, Original cree led diode 7mm x7mm

FOB Price

US$ 7.2 - 8.2 / Piece

500 Pieces(Min. Order)

Port Hong Kong or Shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Original CREE
Model Number	XHP 70	Type	LED
Package Type	Surface Mount	Max. Forward Voltage	12.4v
Max. Reverse Voltage	-5v	Max. Forward Current	4800MA
Max. Reverse Current	10uA

Product Description

XLamp XHP70

Redefining Performance to Radically Lower System Cost

Powered by Cree’s groundbreaking SC5 Technology™ Platform, the XLamp XHP70 LED is a member of Cree’s Extreme High Power (XHP) class of LEDs that redefines lumen density and reliability to radically reduce system costs by up to 40 percent. At its maximum current, the XHP70 LED delivers twice the light output of the industry’s brightest single-die LED, the XLamp MK-R LED, at a similar lumens per watt and without increasing the package footprint. The XHP70 LED also achieves longer lifetime at higher operating temperatures. The overall result is significantly lower thermal, mechanical and optical costs at the system level.

SPECIFICATIONS:

Size	7 x 7 mm
Product Options	6 V 12 V High-CRI
Maximum Drive Current	4.8 A (6 V) 2.4 A (12 V)
Maximum Power	32 W
Light Output	4022 lm @ 32 W
Typical Forward Voltage	5.8 V White @ 2100 mA (6 V) 11.6 V White @ 1050 mA (12 V)
Viewing Angle	120 °
Binning	85°C ANSI 2- 3- and 5-Step Easy White®
Thermal Resistance	0.9 °C/W
Reflow Solderable	Yes - JEDEC J-STD-020C-compatible
REACH compliant	Yes
RoHS Compliant	Yes
UL recognized	Yes - Level 4 Enclosure Consideration

MORE DETAILS:

Notes:

• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on CRI measurements. See the Measurements section (page 25).
• Cree XLamp XHP50 LED order codes specify only a minimum flux bin and not a maximum. Cree may ship reels in flux bins higher than the minimum specified by the order code without advance notice. Shipments will always adhere to the chromaticity bin restrictions specified by the order code.
