2014 XBM Durable and Energy Saving Rotary Kiln for Calcinating Limestone

              2014 XBM durable and energy saving  Calcination Alumina Rotary Kiln

1. Application of   Calcination Alumina Rotary Kiln.

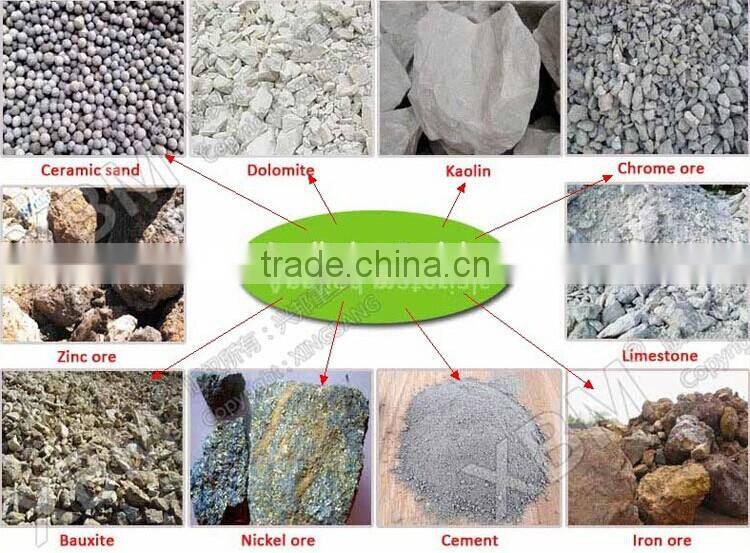

Calcination Alumina Rotary Kiln is mainly used for metallurgy, building materials, ores and other mineral materials, heating and calcining. Such as ceramic sand, bauxite, limestone, cement, fly ash magnesium aluminum hydroxide, aluminum products, alumina refractory materials such as mineral particles and the heating and calcined powder.

2. The working principle and characteristics of Calcination Alumina Rotary Kiln :

The  Calcination Alumina Rotary Kiln  is a cylindrical vessel, inclined  slightly  to  the horizontal,  which  is  rotated  slowly  about its axis.The material to be  processed is fed  into the upper end of the cylinder.  As the kiln  rotates, material gradually moves down towards the lower end, and may  undergo a certain amount of stirring and mixing.  Hot gases pass along the  kiln, sometimes  in the same direction as the process material (co-current), but usually in the opposite direction (counter-current) The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner pipe (or "firing pipe") which acts like a large bunsen burner. The fuel for this may be gas, oil or pulverized coal.

3.      Calcination Alumina Rotary Kiln  Product feature:

1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating device.
2. Catch wheel: including mechanical wheel and hydraulic pressure catch wheel.
3. Gears: single or double. The rotating speed is controlled by regulating motor, DC motor or variable frequency and speed regulation motor. Be reliable, energy-saving and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. Its structure is simple, replacement is convenient and it won’t hurt cylinder when it needs a change.
5. Kiln head hood: including stationary type and flexible type.

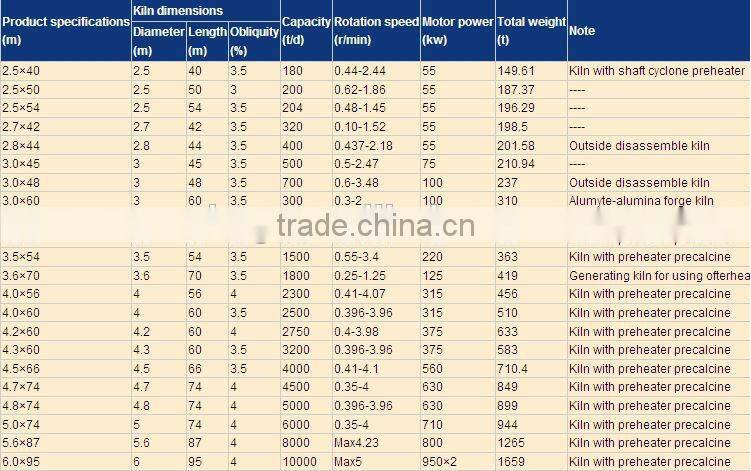

4. Parameter of Calcination Alumina Rotary Kiln

Henan Xingbang Heavy Machinery Co., Ltd(XBM)is a largescale enterprise with Integration of researching, development, manufacturing  and  marketing mining machinery. Our main business  scope is: stone crushing series, industrial  grinding series, oredressing equipment and  cement equipment.

Our products have been exported to a number of foreign countries, including southeastern Asia, south Africa, south America, etc. And numerous customers have come to visit our factories with the purpose of choosing their ideal machine. China XBM always bears in mind the aim "Quality First; Honesty Foremost"!
