Daikin VRV Air Conditioning Slim Ceiling Mounted Ducted Type Fan Coil Unit
- shanghai
- T/T
You May Like
-
Daikin SKyAir Commercial Roundflow Ceiling Mounted Cassette Type Indoor Unit
-
Daikin Multi Split Type Air Conditioner
-
Daikin VRV Series Air Conditioner
-
Daikin VRV-S RJLQ6AAV Air Conditioner
-
Daikin Vrvx Free Pressure Duct Air Conditioner
-
Daikin VRV-X Central System IntelliSense 3D Airflow Duct Fan Coil Unit
Product Details
| Condition | New | Type | Fan Coil Unit | |
| Place of Origin | Shanghai, China | Brand Name | DAIKIN | |
| Model Number | FXDP50QPVC | Operating Voltage | Other, 220V AV | |
| Mounting | Wall / Window Mount | Certification | CE | |
| After-sales Service Provided | Overseas service center available |
Product Description
Specifications
slim ceiling mounted ducted fan coil unit1.mute operation
2.CE,ISO 9001certificate
pany onsite checked by alibaba staff
Slim ceiling mounted duct type( capact mode)
1.mute operation
2.CE,ISO 9001certificates
pany onsite checked by alibaba staff
4.inverter
Products discription:
Slim design, quietness and static pressure switching
1. Suited to use in drop-ceilings!

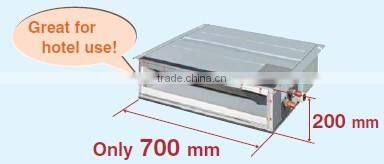

Only 700 mm in width and 23 kg in weight, this model is suitable to install in limited spaces like drop-ceilings in hotels.
1.Drain pump is equipped as standard accessory with 750 mm lift.

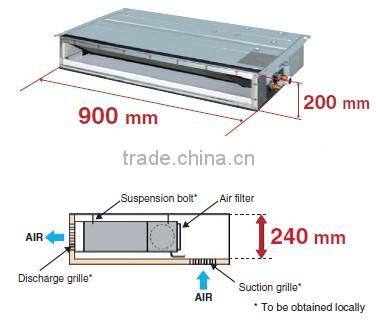

2.Only 200 mm in height, this model can be installed in rooms with as little as 240 mm depth between the drop-ceiling and ceiling slab
3. External static pressure selectable by remote controller switching make this indoor unit a very comfortable and flexible model.
4. FXDP-QPVC models are with a drain pump (750 mm lift) as astandard accessory.
5. Control of the airflow rate has been improved from 2-step to 3-step control.
6.Low operation sound level.

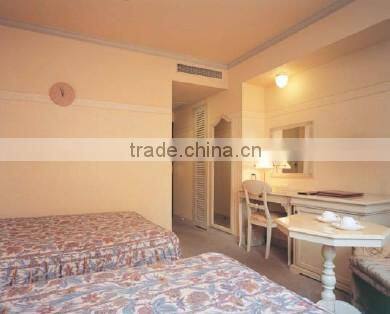

7.The install case

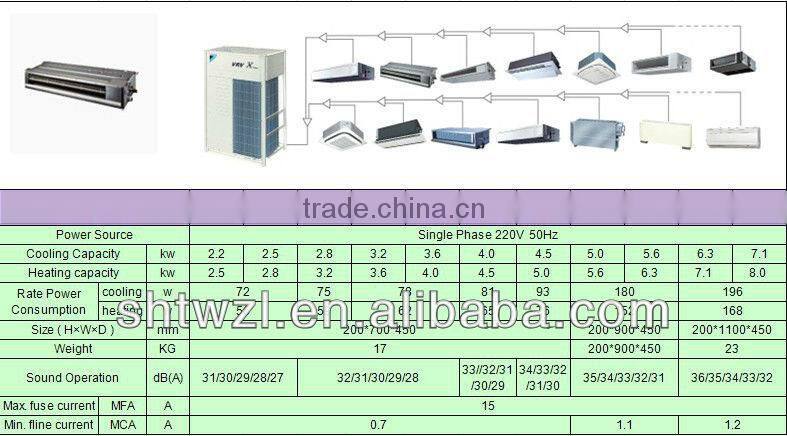

Parameter List
Ultrathin machine body
thickness of only 260mm, it needs small suspended ceiling space. It can be fully matched up with interior decoration.
Thin airpipe machine with high capacity
Thin airpipe machine with high capacity,with appropriate external static pressures, the tuyere can be freely set when airpipe is connected.
If you want to know more information,welcome to send us an inquiry!
| model | FXDP50QPVC |
| power source | 220V/50Hz |
| cooling capacity | 5.0kw |
| heating capacity | 5.6kw |
| electric consumption | 270/270 watt |
| demension | 200*700*450(mm) |
| weight | 20kg |
| MFA | 15 A |
| MCA | 1.6 A |
| color | white |
1)Daikin factory(in Shanghai):
2)Daikin R&D department:
3)our work office:
