VRV-X Series R410a Central Commercial Air Conditioning
- shanghai
- T/T
You May Like
-

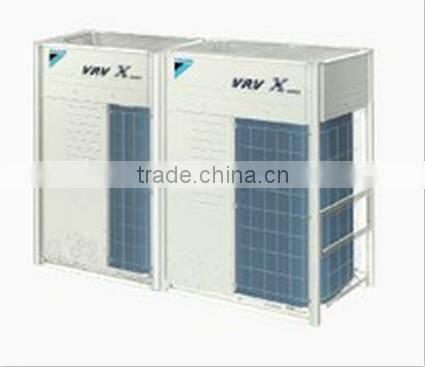

Daikin VRV-X Series R410a Central Commercial Air Conditioning
-
Daikin VRV-X Series Inverter Central Commercial Air Conditioning
-
DAIKIN VRV-X WALL MOUNTED INDOOR UNIT
-
DAIKIN VRV-X INTELLIGENT 3D AIR PIPE INDOOR UNIT
-
VRV--X FLOOR STANDING AIR CONDITIONER
-
DAIKIN VRV-X INTELLIGENT 3D AIR PIPE INDOOR UNIT
Product Details
| Place of Origin | Shanghai, China | Brand Name | daikin | |
| Model Number | RUXYQ28AB | Type | Air Conditioning |
Product Description
ALL AROUND THE WORLD
TEl:+0086 021-63086278
SALES VIBER:+8618329069916
SALES SKYPE:aug25th93
WHATSAPP:+8618329069916
daikin VRV-X Series central air conditioning
1.mute operation:22dB
2.CE,ISO 9001 certificate
pany onsite checked by alibaba staff
4.short lead time
5.energy-saving
For Large-Sized Buildings
Energy Saving
Outdoor units can operate up to 4.41 COP to reduce energy consumption.
Large Capacity and Space Saving
Outdoor units with capacities up to 56kW for a single outdoor unit and 168kW for a 3-unit combination are available. Featuring compact size and small footprint, VRV outdoor units enable space-saving and easy installation.
Flexibility
Increasing high static pressure for the outdoor unit fan gives greater installation flexibility.
High Reliability
The addition of various advanced features ensures reliable and stable system operation.
VRV-X —Created to respond to the needs of large-sized buildings
Daikin’s constant efforts have been devoted towards using the latest and most revolutionary technologies in the development of the VRV-X Series system for large-sized buildings. The system offers larger outdoor capacities, greater energy savings, easier installation, longer actual and total piping, and more.
1. Improved fans and grilles

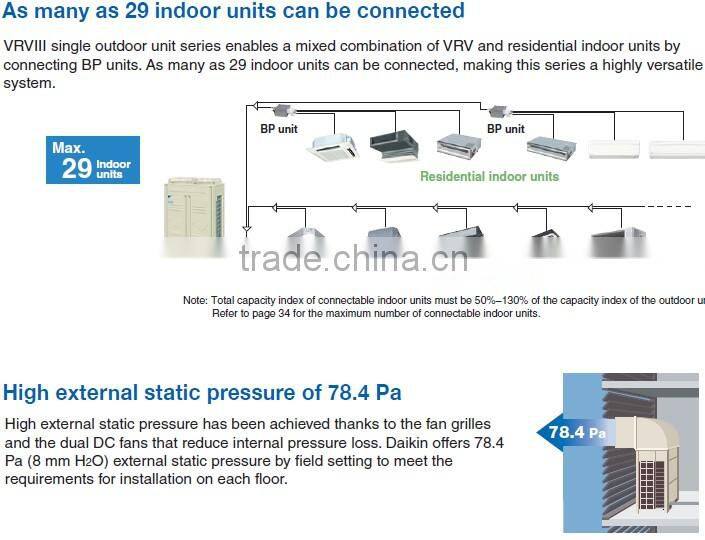

A higher external static pressure has been achieved–from 58. 8 Pa to 78.4 Pa–thanks to reduced internal pressure loss, use of self developed fans and grilles.

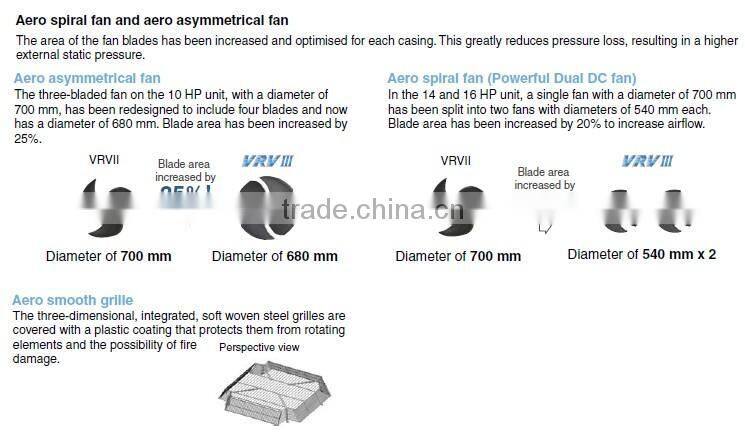

Aero spiral fan and aero asymmetrical fan
The area of the fan blades has been increased and optimised for each casing. This greatly reduces pressure loss, resulting in a higher external static pressure.
Energy efficiency and quiet operation

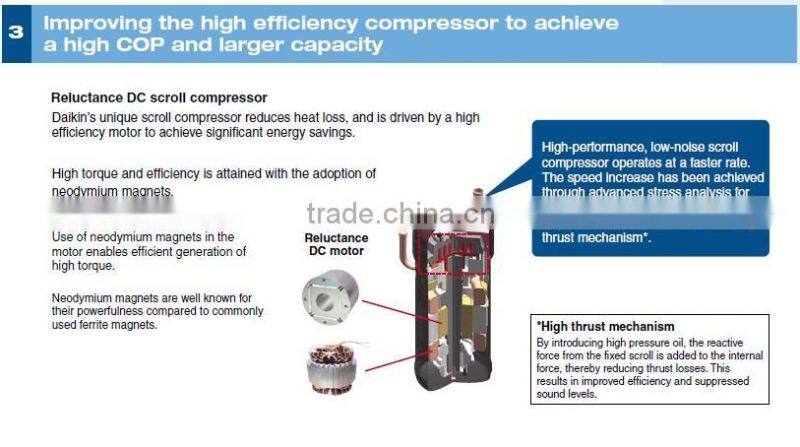

Outdoor units use Daikin’s unique scroll compressor to realise energy saving performance and quiet operation.

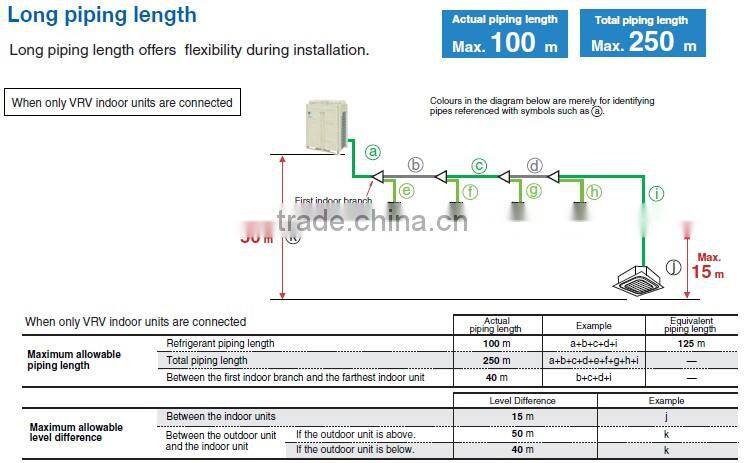

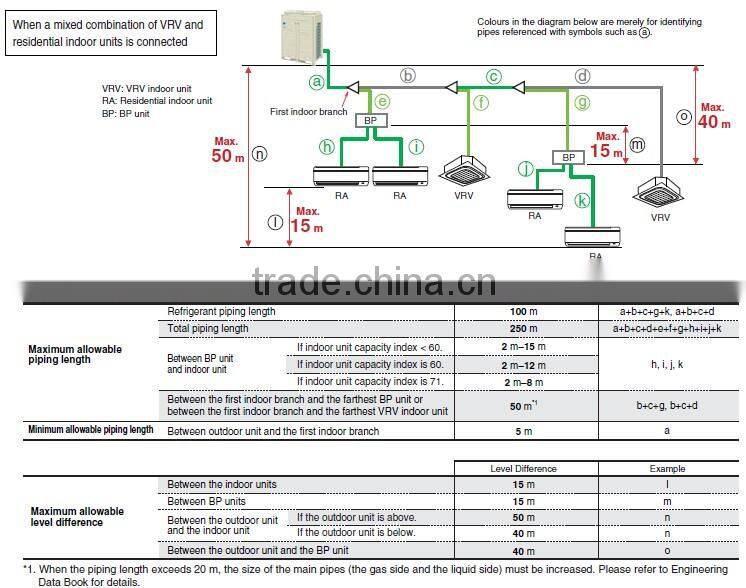

Design flexibility
Parmeter List
| model | RUXYQ28AB |
| power source | 380V/50Hz |
| refrigeration | R410A |
| Cooling Capacity | 78.5 kW |
| Heating Capacity | 87.5 kW |
| power consumption(cooling) | 21.40 kW |
| power consumption(heating) | 21.20 kW |
| motor | DC |
| demension | 1657*930*765(mm)+ 1657*1240*765(mm) |
| net weight | 523 kg |
| gross weight | 553 kg |
| MCA | 55 A |
| MFA | 49.1 A |
| operation sound | 63~66 dB(A) |

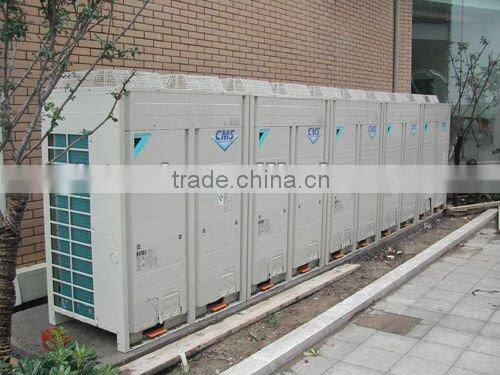

Product Picture

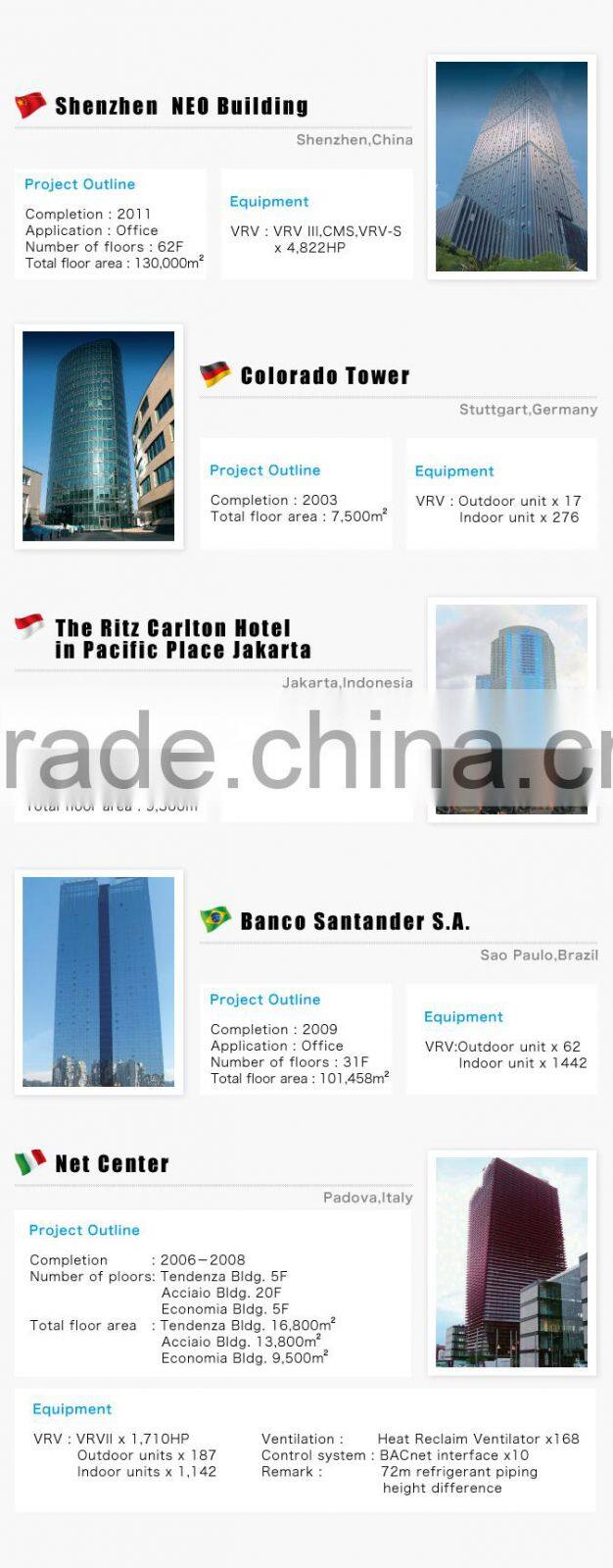

Our Project:
