Product Details
| Condition | New | Type | Stone Polishing Machine | |
| Use | Other, granite,marble,quartz stone,artificial stone,ceramic | Production Capacity | 1-5m/min | |
| Place of Origin | Guangdong, China | Brand Name | YONGTAO | |
| Model Number | YPD-800 | Voltage | 380V,415V | |
| Power(W) | 20kw | Dimension(L*W*H) | 4.2m*2.0m*1.8m | |
| Weight | 3T | Certification | CE, ISO9001 | |
| Warranty | 6 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

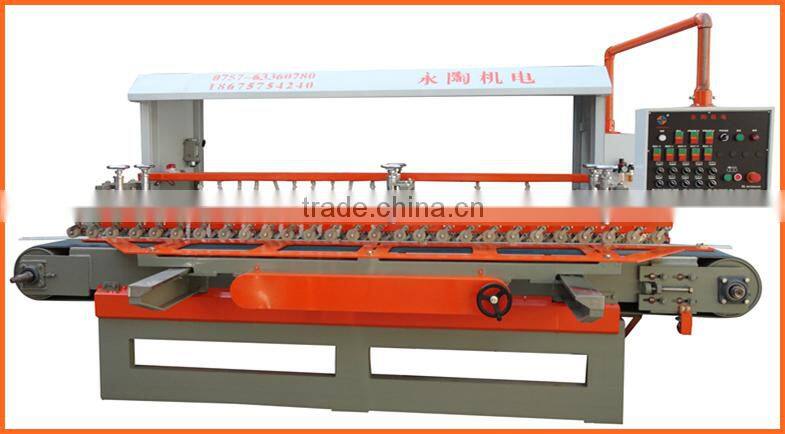

Full Automatic Stone Tile Edge Beveling Machine YPD-800
A.Introduction:
YPD-800 full automatic stone tile edge chamfering and polishing machine is our newest products. It is function-integrated machine mainly used for stone tile beveling and polishing.This machine can greatly increase the processing efficiency and bring good economic benefits to our cunsumers.
B.Functions of the machine:

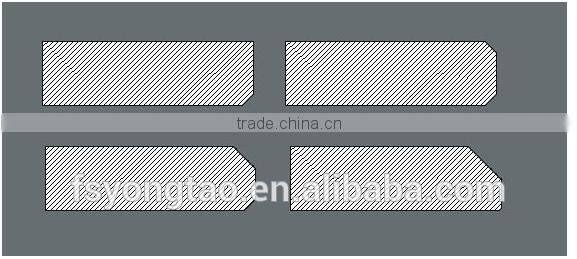

Infeeding --Grind the straight-line edge(deburring, width fixing) --straight-line edge polishing ---Bottom Beveling ---Bevel Bottom Polishing ---Discharging
Grind the straight-line edge(deburring, width fixing)
Straight-line edge polishing :
Bottom Beveling:
Bevel Bottom Polishing ---Discharging
C.Advantage of the machine:
a. Most of the building |stone materials are workable:
marble, granite, quartz stone, artificial stone, porcelain tile, glass.
b. High efficiency: most processing speed 5 m/min (2400m per day,8 hours)
c. High performance:
Running stably with high speed, prevent tile from edge crack and unevenness.
d. Environmental Friendly: use circulating water system for the cooling of edging,chamfering and polishing.
D.Technical Parameters:
No. | Parts of the Machine | Unit | Parameter numbers |
1 | Deburring Head | PCS | 1 |
2 | Power of Deburring Head Motor | KW | 3 |
3 | Head of Edge Chamfering Wheel | PCS | 2 |
4 | Power of Edge Chamfering Head Motor | KW | 3 |
5 | Bevel Edge Polishing Head | PCS | 8 |
6 | Diameter of Bevel Edge Polishing Pad | MM | 125 |
7 | Power of Bevel Edge Polishing Motor | KW | 2.2*4 |
8 | Workable Width | MM | 80-800 |
9 | Workable Thickness | MM | 10-60 |
10 | Workable Speed | M/MIN | 1.0-5.0 |
11 | Total Power | KW | 20.05 |
12 | Normal Power Consumption | KW/H | 18 |
13 | Normal Water Consumption | L/MIN | 450 |
14 | Machine Size | L*W*H | 4.2*2.0*1.8 |
15 | Machine Weight | T | 3 |
Intensive Packaging:
Standard Export Package.The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 15 days after 30% deposit.
You can choose ocean freight, air freight,express according to your requirement.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Warranty Period: 6 months
Within warranty period, free parts and engineers available for service oversea.
Out of warranty period, parts and technical service are still available.
Question1 : What kind of materials can be processed normally?
Answer: stone, marble,granite and so on, can be processed.
Question2 : Does the machine need any other equipment working with?
Answer: NO!.
.
Question3 : Can you teach us how to operate the cutting machine.
Answer: Yes! We teach the buyer how to use by many methods, such as online teaching, sending detail operating videos and pictures, telephone teaching, and fieldwork teaching if needed.
Question3 : What's your factory like?
Answer: Our company Foshan Yongtao Machinery Co. Ltd. is located at Ceramic City(Foshan), Our ceramic machine are very popular in all over the country and sold to many other global countries. The main features of our products is good quality and low price, perfect service. Yongtao Machinery is famous machinery brand in China and top 10 ceramic machinery plant throughout China.
Question4 : Can I take a look at your factory and machines first.
Answer: No problem! As soon as you get to Foshan, or Guangzhou, just ring Mr. Steve up, then we will pick you up to our factory.
beck OU
Mob/Whatsapp: +0086-18665475301
Tel: 0086-757-63297366 Fax: 0086-757-86442586
Wechat: beckyongtao QQ:3424458200 Skype: Beck.YongTao
website:https://fsyongtao.en.china.cn/
YONGTAO MACHINERY is born for technolgy! We aim at providing our customers with a complete solution for ceramic and stone further processing in the architectural decoration profession.
YONGTAO company was established in 2010 by the most experienced and skillfull machinery experts. Over the years, YONGTAO has become top brand in the stone and ceramic further processing profession. Now YONGTAO has captured the most in the related market. The key of success can be: top quality, reasonalbe price, and attentive after-sale service
By far there are almost 100 staff in our company, including 8 person technical research team and 30 after-sales service team available to oversea service
Due to the continuous great efforts we make to provide consumers with sactifactory machines and best service, YONGTAO company was rewarded "Quality Trustworthy Organization", "Top 10 Brand in Stone and Ceramic Further Processing Machinery", by the govenment.
The Motto of YONGTAO: "YOU THINK, WE MAKE"
