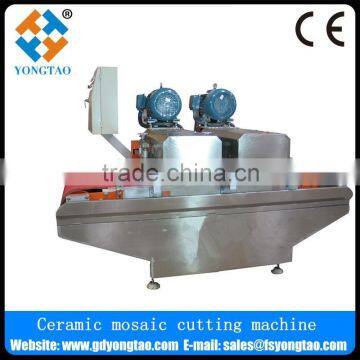

Dual spindle ceramic mosaic tile cutting machine YT-2-800(600)
- 50 Set / Sets per Month
- Foshan Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot sell ! YT-1200 Multifunction Ceramic Tile Cutting Machine
-
Bilateral Cutting machine for Ceramic Resin and Stone
-
Cutting machine for ceramic tile, granite and marble CNC
-
YT-1000 Manual numberial ceramic tile cutting machine
-
Cutting Machine for borders ceramic tiles price
-
automatic dry type cutting machine
Product Details
| Condition | New | Type | Tile Cutting Machine | |
| Tile Type | Ceramic | Use | Other, step, wall,floor | |
| Production Capacity | 2-6M/MIIN | Place of Origin | Guangdong, China | |
| Brand Name | YONGTAO | Model Number | YJ-2/800 | |
| Power(W) | 32.6KW | Voltage | 380V | |
| Dimension(L*W*H) | 2500L*1780W*1630H | Weight | 2200KG | |
| Certification | CE, ISO9001 | Warranty | 6 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Dual Spindle Automatic Continuous Ceramic Mosaic Tile Cutting Machine (YT-2-800 / YT-2-600)
1.Main Function:
This machine is applied to cut large tiles(max width 800mm/600mm) into strips and mosaic. Large tiles of different size can be cutted into strips and mosaic continuously without doing any adjustment.
2.Working Principal:
For Splitting
a/ 1-12 saw blades installed on the first spindle do the pre-cutting (optional)
b/ The same number of saw blades installed on the second spindle do the splitting
For Slotting
Resin slotting wheel installed on the spindle do the slotting.
3.Main Advantages:
1. Dovetail-groove lifting guide, double bridge structure and all steel machine frame make the machine work stably and dualby
2. Well-known brand electric motor and bearing produce high performance.
3. Twice cutting can assure high speed and less edge-crack
4. V-guide of the conveyor belt keeps the belt running with high precision.
5. Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.
4.Technical Parameters:
Model | Spindle Number | Width of Conveyor | Dia of Saw Blade | Power of Spindle Motor |
YT-1-600 | 2 | 620mm | Φ150/Φ250 | 15KW |
YT-1-800 | 2 | 820mm | Φ150/Φ250 | 15KW |
Model | Power of Conveyor Motor | Conveyor speed | Power of Lifting Motor | Workable Width |
YT-1/600 | 1.1KW | 0.8-4.0m/min | 0.75KW | 20-600mm |
YT-1-800 | 1.1KW | 0.8-4.0m/min | 0.75KW | 20-800mm |
Model | Max Workable Thickness | Total Power | Machine Size | Weight |
YT-1-600 | 20mm | 32.6KW | 2500*1580*1630 | 2000KG |
YT-1-800 | 20mm | 32.6KW | 2500*1780*1630 | 2200KG |
Intensive Packaging:
Reinforced wooden crate.The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 5 days after 30% deposit.
You can choose ocean freight, air freight,express according to your requirement.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Warranty Period: 6 months
Within warranty period, free parts and engineers available for service oversea.
Out of warranty period, parts and technical service are still available.
