14+7 Ceramic Tile Bullnose Groove Polish Machine
- guangzhou port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
YTE-1200 14 Heads Ceramic Tile Polishing Machine
-
CERAMIC TILE BULLNOSE POLISHING MACHINE YT-1200 WITH 14 HEAD
-
Automatic Ceramic Tile Polishing Machine for Stair Step
-
Full Automatic Tile Edge Chamfering Machine, Tile Edge Beveling Machine, Tile Bevel Edge Polishing Machine
-
Double Shaft Full Automatic Continuous Cutting Machine
-
YJ-2/800 Double Shaft Full Automatic Continuous Cutting Machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | YONGTAO | |
| Model Number | YKH-1200 14+7ceramic tile bullnose groove polish machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

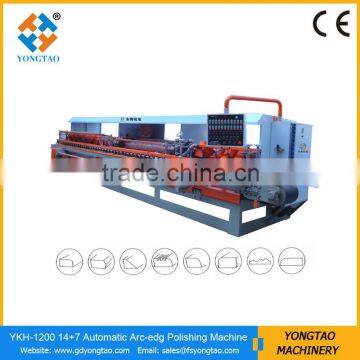

14+7 ceramic tile bullnose groove polish machine
It can use to deep process ceramic tile and stone,such as grinding,chamfering(30angle,45angle,60angle),bottom chamfeing,bullnose,polishing(polishing bullnose,45angle polishing),groove(anti-skid slot),groove polishing,french line,duckbilled line,concave-conrew groove,fingernail line,heterotype line and so on.
Parameter:
| number | name | unit | paremeter |
| 1 | Conveyor belt dimension | mm | 350 |
| 2 | Number of grinding wheels | unit | 14 |
| 3 | Diameter of grinding wheels | mm | 95 |
| 4 | Number of chamfering wheels | unit | 6 |
| 5 | Diameter of Chamfering wheels | mm | 150-200 |
| 6 | Number of shaped Wheels | unit | 2 |
| 7 | Number of anti-skid slots | unit | 3-4 |
| 8 | Diameter of shaped wheels | mm | 150 |
| 9 | Number of polishing wheels | unit | 5 |
| 10 | workable width | mm | 80-1200 |
| 11 | Speed | m/min | 0.5-8 |
| 12 | Workable thickness | mm | 6-30 |
| 13 | total power | kw | 60 |
| 14 | power consumption | kw/h | 25 |
| 15 | gas consumption | L/min | 50 |
| 16 | external size | A*B*H(m) | 8.8*2.2*2.0 |
| 17 | weight | KG | about 7000 |
![]() | ![]() |
![]() | ![]() |
Packing and Shipping:
Intensive Packaging:
Reinforced wooden crate.The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 15 days after 30% deposit.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Payment:
T/T : in advance or 30% payment in advance and the rest 70% before shipping.
Warranty Period: 6 months
Within warranty period, free parts and engineers available for service oversea.
Out of warranty period, parts and technical service are still available.
YONGTAO company was established in 2010 by the most experienced and skillfull machinery experts. Over the years, YONGTAO has become top brand in the stone and ceramic further processing profession. Now YONGTAO has captured the most in the related market.The key of success can be: top quality, reasonalbe price, and attentive after-sale service
By far there are almost 100 staff in our company, including 8 person technical research team and 30 after-sales service team available to oversea service.
Due to the continuous great efforts we make to provide consumers with sactifactory machines and best service, YONGTAO company was rewarded"Quality Trustworthy Organization", "Top 10 Brand in Stone and Ceramic Further Processing Machinery", by the govenment.
Q1: How to order?
A: inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>contact ship booking container>>load container>>inform and confirm all documents>>made original documents>>sent documents to customer by express>>inform customer and follow tracking>>after customer inform arrange technology after-sales service.
Q2: About Min order QTY?
A: As customers’ options, you can order one set machine or whole line or we customized with your factory.
Q3: About customization?
A: ODM/OEM business partner will be warmly welcome.
Q4: About sample?
A: For Machine No have Sample. if you need stone line, yes we can arrange sample for you buy traffic expense should be payment from your side.
Q5: About price?
A: Price is based on configuration QTY, payment terms, time of delivery.
Q6: How to request machine?
A: you just tell us:
Which effect you need?
Which size for work before work or finish work?
Which material in the machine to processing?
How many capacity you request?
Q7: Country of Origin?
A: Made In China
