YT-2-800 High speed full automatic ceramic and mosaic cutting machine
- 50 Set / Sets per Month
- Foshan Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Other, marble,quartz stone,granite | Production Capacity | 2-6m/min | |
| Place of Origin | Guangdong, China | Brand Name | YONGTAO | |
| Model Number | YT-2-800 | Voltage | 380V | |
| Power(W) | 32.6kw | Dimension(L*W*H) | 2500mm*1780mm*1630mm | |
| Weight | 2200kg | Certification | CE,ISO9001 | |
| Warranty | 6 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

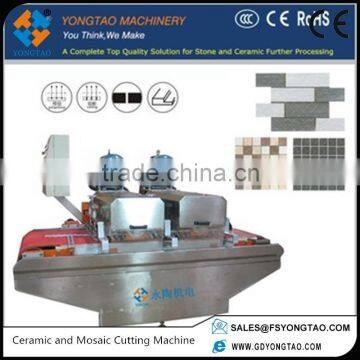

Full Automatic Continuous Marble Mosaic Cutting Machine
(YT-2-800 / YT-2-600)
1.Main Function:

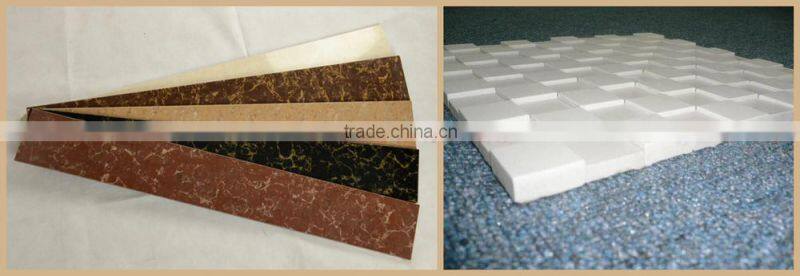

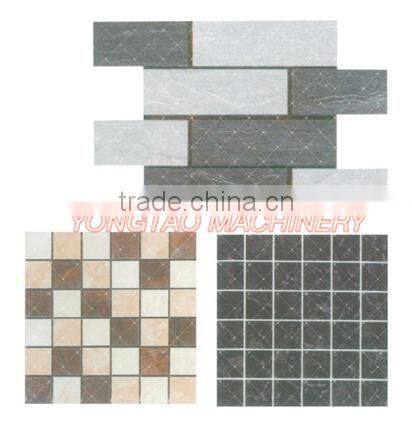

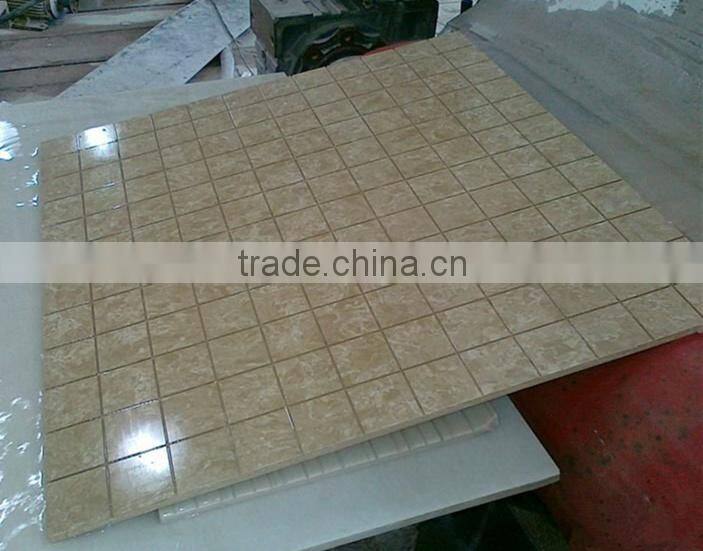

This machine is applied to cut large tiles(max width 800mm/600mm) into strips and mosaic. Large tiles of different size can be cutted into strips and mosaic continuously without doing any adjustment.
2.Working Principal:
For Splitting

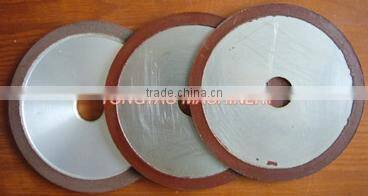

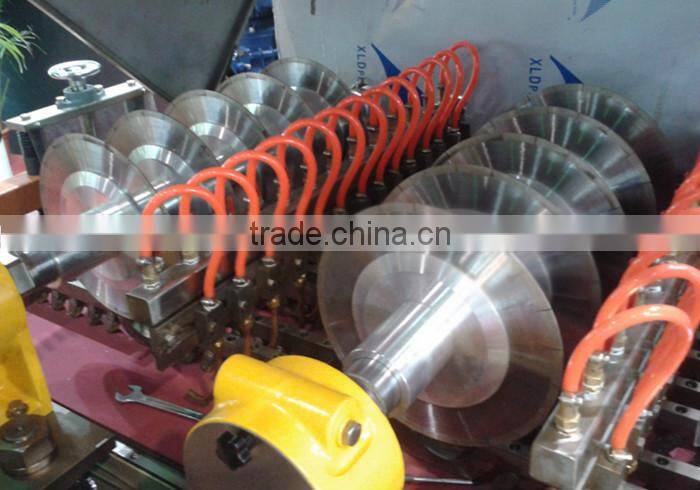

a/ 1-12 saw blades installed on the first spindle do thepre-cutting (optional)
b/ The same number of saw blades installed on the second spindle do thesplitting
For Slotting
Resin slotting wheel installed on the spindle do the slotting.
3.Main Advantages:
1. Dovetail-groove lifting guide, double bridge structure and all steel machine frame make the machine work stably and dualby
2. Well-known brand electric motor and bearing produce high performance.
3. Twice cutting can assure high speed and less edge-crack
4. V-guide of the conveyor belt keeps the belt running with high precision.
5. Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.
4.Technical Parameters:
Model | Spindle Number | Width of Conveyor | Dia of Saw Blade | Power of Spindle Motor |
YT-2-600 | 2 | 620mm | Φ150/Φ250 | 15KW |
YT-2-800 | 2 | 820mm | Φ150/Φ250 | 15KW |
Model | Power of Conveyor Motor | Conveyor speed | Power of Lifting Motor | Workable Width |
YT-2-600 | 1.1KW | 0.8-6.0m/min | 0.75KW | 20-600mm |
YT-2-800 | 1.1KW | 0.8-6.0m/min | 0.75KW | 20-800mm |
Model | Max Workable Thickness | Total Power | Machine Size | Weight |
YT-2-600 | 30mm | 32.6KW | 2500*1580*1630 | 2000KG |
YT-2-800 | 30mm | 32.6KW | 2500*1780*1630 | 2200KG |

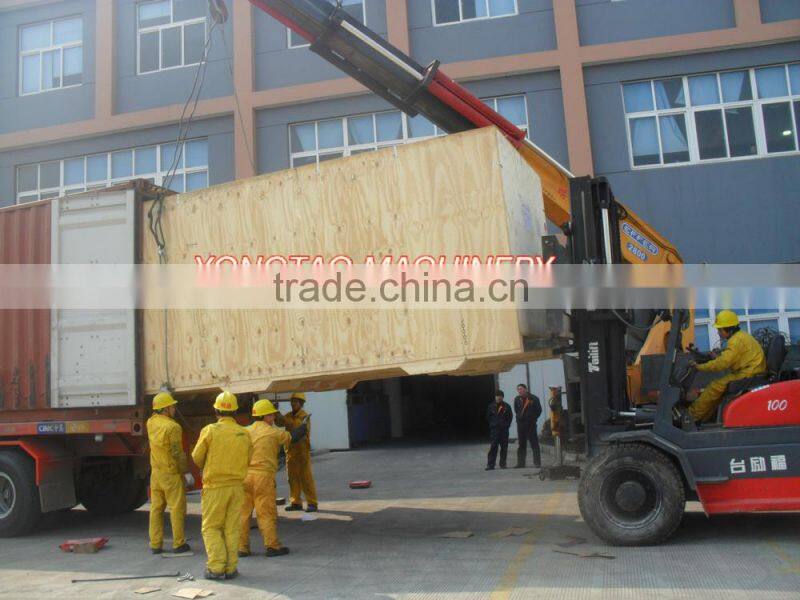

Intensive Packaging:
Reinforced wooden crate.The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 5 days after 30% deposit.
You can choose ocean freight, air freight,express according to your requirement.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Warranty Period: 6 months
Within warranty period, free parts and engineers available for service oversea.
Out of warranty period, parts and technical service are still available.
YONGTAO MACHINERY is born for technolgy! We aim at providing our customers with a complete solution for ceramic and stone further processing in the architectural decoration profession.
YONGTAO company was established in 2010 by the most experienced and skillfull machinery experts. Over the years, YONGTAO has become top brand in the stone and ceramic further processing profession. Now YONGTAO has captured the most in the related market.The key of success can be: top quality, reasonalbe price, and attentive after-sale service
By far there are almost 100 staff in our company, including 8 person technical research team and 30 after-sales service team available to oversea service
Due to the continuous great efforts we make to provide consumers with sactifactory machines and best service, YONGTAO company was rewarded"Quality Trustworthy Organization", "Top 10 Brand in Stone and Ceramic Further Processing Machinery", by the govenment.
The Motto of YONGTAO: "YOU THINK, WE MAKE"
