Cheap Ceramic Mosaic Cutting Machine Price
- Foshan Shenzhen Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Stone Cutting Machine | |
| Use | Other, marble,quartz stone,granite | Production Capacity | 2-6m/min | |
| Place of Origin | Guangdong, China | Brand Name | YONGTAO | |
| Model Number | YT-2-800 | Voltage | 380v/220v | |
| Power(W) | 32.6kw | Dimension(L*W*H) | 2500mm*1780mm*1630mm | |
| Weight | 2200kg | Certification | CE,ISO9001 | |
| Warranty | 6 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

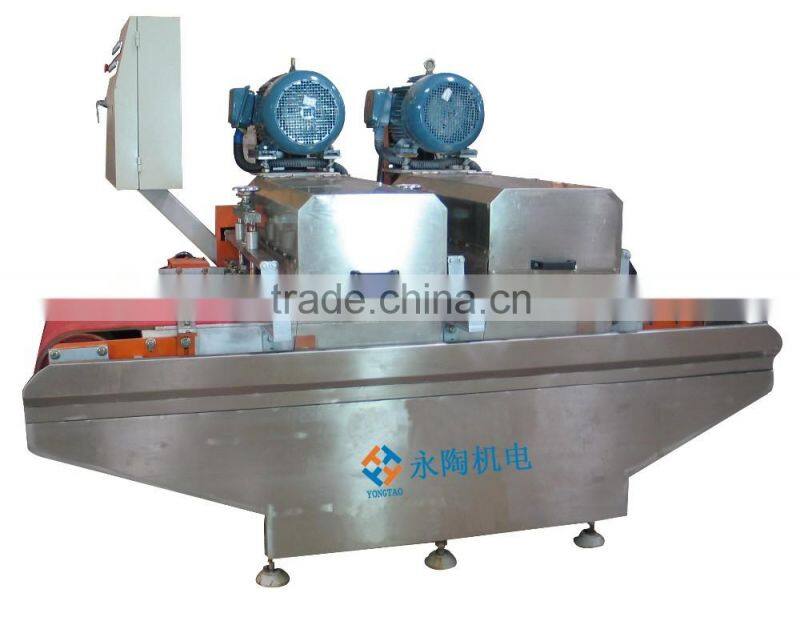

Spindles Ceramic Tile Mosaic Cutting Machine and Multi-Blade Mosaic Cutting Machine
1.Main Function:

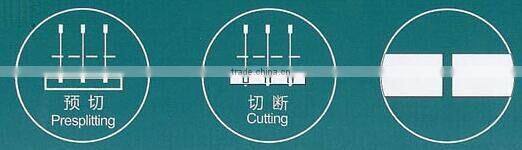

Ceramic tile mosaic cutting machine is appied to cut large tile into strip or prismatic or mosaic .The workable width is 25*25mm to 600mm*600(800*800mm),even you can process different width in the same time.The working principal is first presplitting,then cut off,which assure high output and little damage rate.
For Splitting

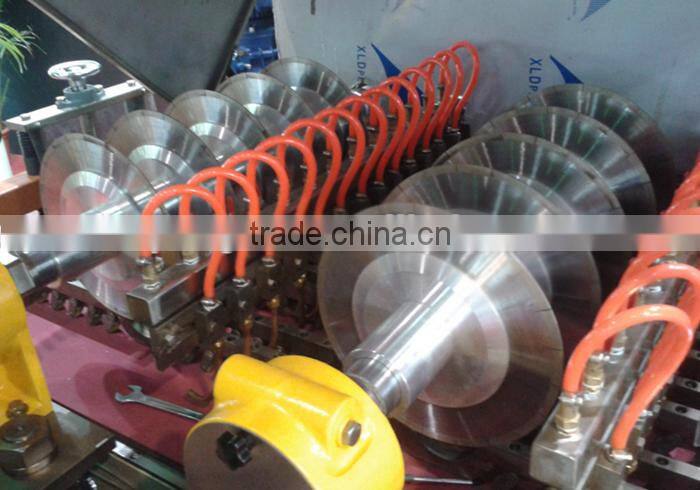

a/1-12 saw blades installed on the first spindle do thepre-cutting (optional)
b/The same number of saw blades installed on the second spindle do thesplitting
For Mosaic

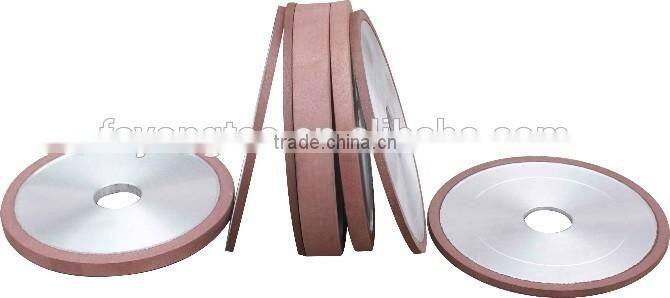

Resin mosaic wheel installed on the spindle do the slotting.
2.Main Advantages:
1. Dovetail-groove lifting guide, double bridge structure and all steel machine frame make the machine work stably.
2. Well-known brand electric motor and bearing produce high quality.
3. Twice cutting can assure high speed and less edge-crack.
4. V-guide of the conveyor belt keeps the belt running with high precision.
5.Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.
3.Technical Parameters:
Model | Spindle Number | Width of Conveyor | Dia of Saw Blade | Power of Spindle Motor |
YT-2-600 | 2 | 620mm | Φ150/Φ250 | 15KW |
YT-2-800 | 2 | 820mm | Φ150/Φ250 | 15KW |
Model | Power of Conveyor Motor | Conveyor speed | Power of Lifting Motor | Workable Width |
YT-2-600 | 1.1KW | 0.8-6.0m/min | 0.75KW | 20-600mm |
YT-2-800 | 1.1KW | 0.8-6.0m/min | 0.75KW | 20-800mm |
Model | Max Workable Thickness | Total Power | Machine Size | Weight |
YT-2-600 | 30mm | 32.6KW | 2500*1580*1630 | 2000KG |
YT-2-800 | 30mm | 32.6KW | 2500*1780*1630 | 2200KG |
Intensive Packaging:
Reinforced wooden crate.The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 15 days after 30% deposit.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Payment
TT 30% in advance, 70% balance before shipping
Warranty Period: 6 months
Within warranty period, free parts and engineers available for service oversea.
Out of warranty period, parts and technical service are still available.
YONGTAO MACHINERY is born for technolgy! We aim at providing our customers with a complete solution for ceramic and stone further processing in the architectural decoration profession.
YONGTAO company was established in 2010 by the most experienced and skillfull machinery experts. Over the years, YONGTAO has become top brand in the stone and ceramic further processing profession. Now YONGTAO has captured the most in the related market.The key of success can be: top quality, reasonalbe price, and attentive after-sale service
By far there are almost 100 staff in our company, including 8 person technical research team and 30 after-sales service team available to oversea service
Due to the continuous great efforts we make to provide consumers with sactifactory machines and best service, YONGTAO company was rewarded"Quality Trustworthy Organization", "Top 10 Brand in Stone and Ceramic Further Processing Machinery", by the govenment.
The Motto of YONGTAO: "YOU THINK, WE MAKE"
Q1: How to order?
A: inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>contact ship booking container>>load container>>inform and confirm all documents>>made original documents>>sent documents to customer by express>>inform customer and follow tracking>>after customer inform arrange technology after-sales service.
Q2: About Min order QTY?
A: As customers' options, you can order one set machine or whole line or we customized with your factory.
Q3: About customization?
A: ODM/OEM business partner will be warmly welcome.
Q4: About sample?
A: For Machine No have Sample. if you need stone line, yes we can arrange sample for you buy traffic expense should be payment from your side.
Q5: About price?
A: Price is based on configuration QTY, payment terms, time of delivery.
Q6: How to request machine?
A: you just tell us:
Which effect you need?
Which size for work before work or finish work?
Which material in the machine to processing?
How many capacity you request?
Q7: Country of Origin?
A: Made In China
