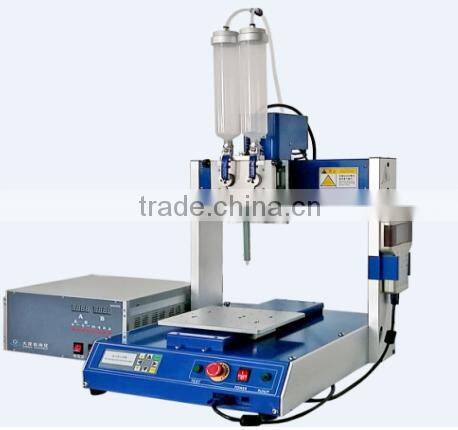

Peristaltic Pump AB Glue Dispensing Robot

  Peristaltic pump AB glue dispensing robot

Introduction:

Equipped with dual Peristaltic pump mixing quantitative control system,it can realize dispensing process with adjustable ratio(the viscosity is lower than 20000cps ,AB glue with ratio 1:1-1:20).DaHua’s robot can dispense pattern of dots ,strips,arcs and patterns on different planes or curved surface with automatic control panel.With the advantage of high precision quantitative liquid material and glue control system and excellent repeatability for precise application.

1.Equipped with separate stepper motor control the pump running speed,finish precision mixing/metering,dispensing.

2.The dispensing valve and tank are in digital temperature control mode,the highest temperature can reach 80℃.

3.There will be less waste because of dynamic mixing way.

4.Equipped with intelligent microcomputer,the minimum is 0.01g glue per 0.1second.

5.It can realize dispensing process with adjustable ratio(the viscosity is lower than 20000cps ,AB glue with ratio 1:1-1:20),such as epoxy resin.

6.It can match different pipes,also,mix without air bubbles.

7.Our robot can replace manual operation by high precision programming of dots ,strips,arcs and patterns on different planes or curved surfaces.

8.Easy to operate and edit program,you can learn how to operate within half an hour.

Application

Generally suitable for battery,electric capacity,motor bearing,adapter,dispensing glue inside power supply and crystal sign etc.

specification:

X/Y/Z working range: 300 x 300 x 100mm

Standard : the factory standard

XY/Z Maximum Load : 8 kg / 2 kg

XY/Z Speed: 0.1-800/350mm/Axis

Repeatability: ±0.02mm/Axis

Data memory capacity : it can store 10000 profiles,8000 traces in each profile.

Display way :LCD display

Safety protection:photoelectric sensor

Edit Programming :hand-held programmer

I/O Signals: 4 Inputs / 4 Outputs

Patterns : dots/strips/arcs/3D track

Power Supply: AC220V/350W

Working Temperature: 0 ~40℃

Relative Humidity: 20~90% (no condensation)

Complete accessories dispensing kit  other relation product

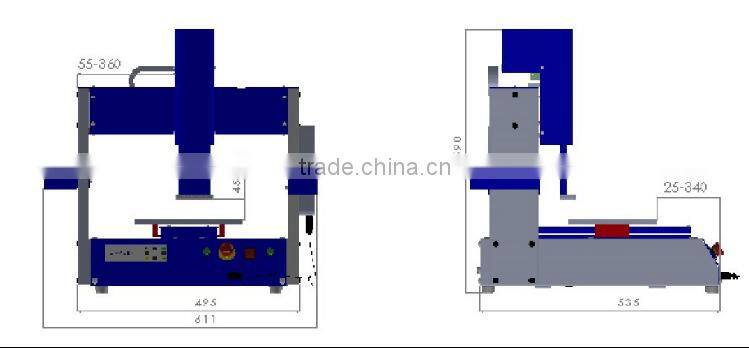

Drawing:

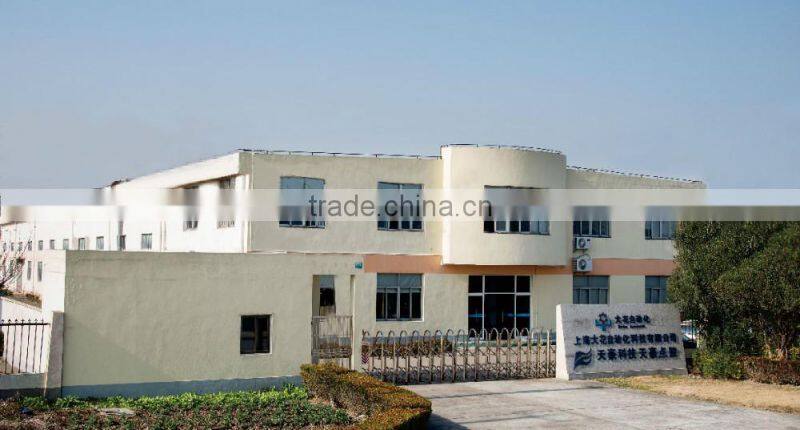

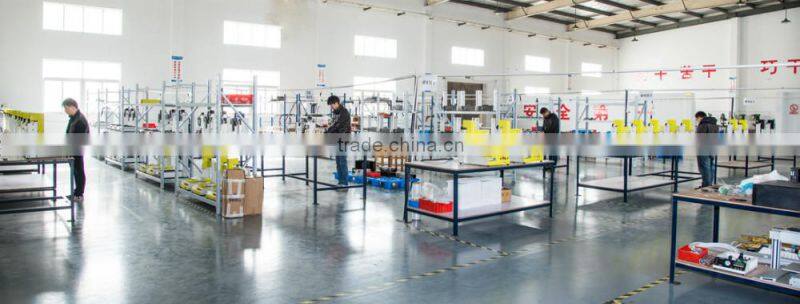

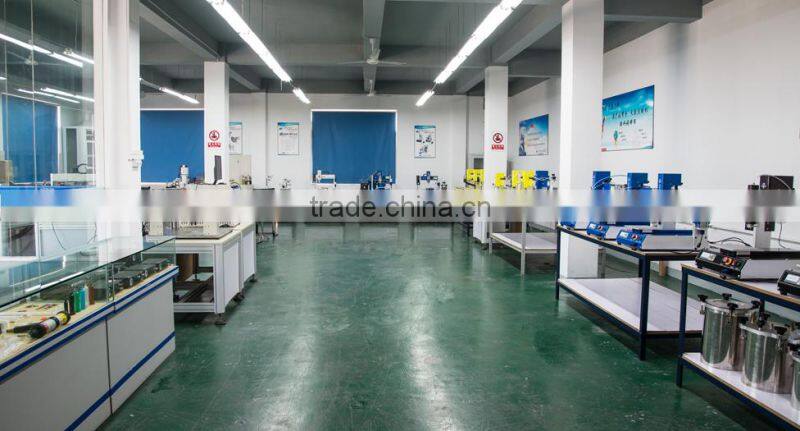

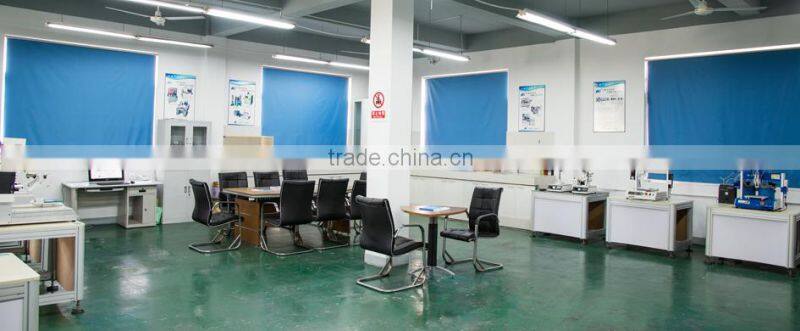

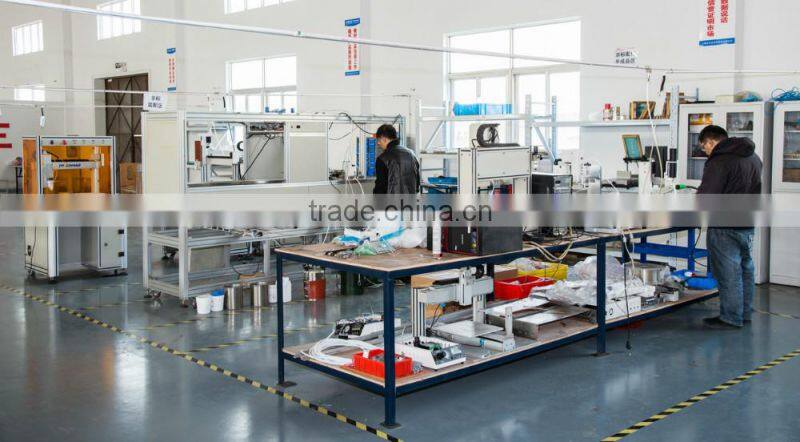

Our factory
