Dahua Dispensing Robot Special for Quick-drying Glue/peristaltic Pump Dispenser Robot
- Shanghai
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | DAHUA AUTOMATIC | Model Number | DH-3310D-206B | |
| Voltage | 220V | Power(W) | 500W | |
| Weight | 30kg | Dimension(L*W*H) | 50*58*61 | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

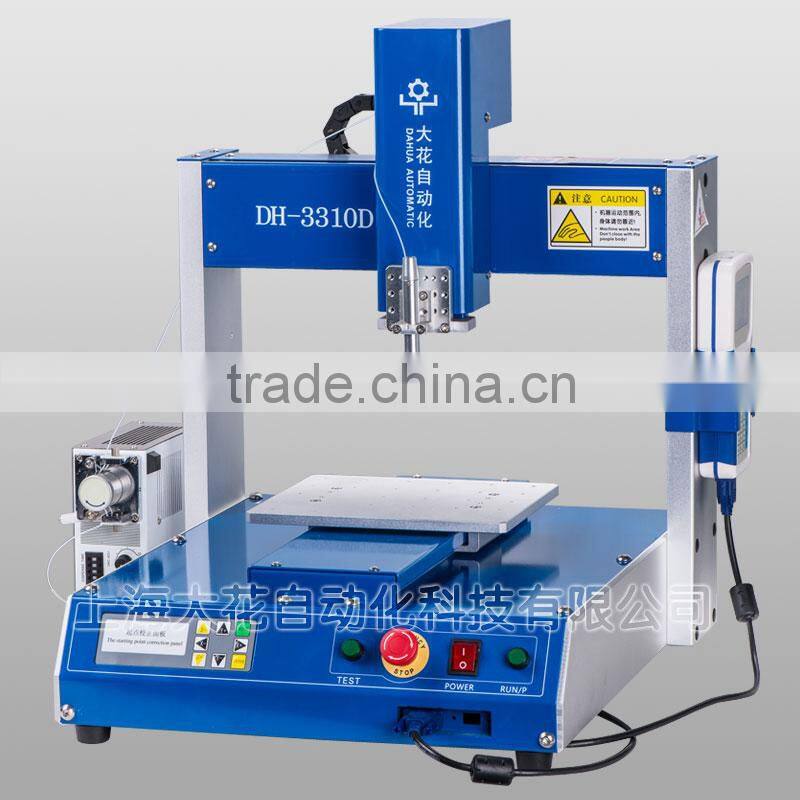

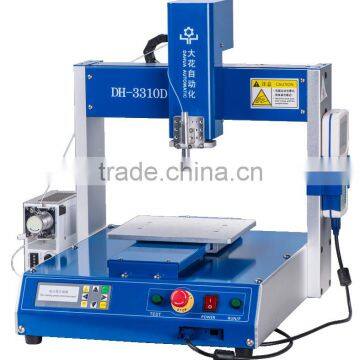

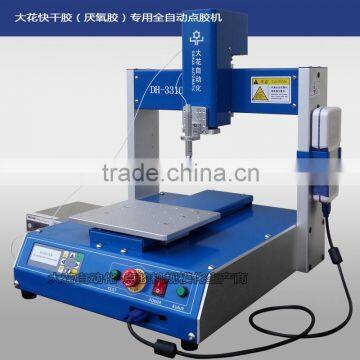

Dahua dispensing robot special for quick-drying glue/peristaltic pump dispenser robot
Introduction:
Equipped with instantaneous adhesive quantitative dispensing system,it can dispense instantaneous adhesive.DaHua’s robot can dispense glue of dots ,strips,arcs and patterns on different planes or curved surface with automatic control panel.With the advantage of high precision quantitative liquid material control system and excellent repeatability for precise application.
Features:
1.There is no need for air supply,but power supply.
2.Insert the tube into instantaneous adhesive bottle,the adhesive will be pushed to the front.
3.Teflon tube can resist corrosion and avoid the tip blocked.
4.The valve is equipped with suck-back function,eliminates the residual glue instantly when dispense off.
5.Dahua’s robot can dispense patterns of dots ,strips,arcs and patterns on different planes or curved surface with automatic control panel.
6.Easy to operate and edit program,you can learn how to operate within half an hour.
specification:
X/Y/Z working range: 300 x 300 x 100mm
Standard : the factory standard
XY/Z Maximum Load : 8 kg / 2 kg
XY/Z Speed: 0.1-800/350mm/Axis
Repeatability: ±0.02mm/Axis
Data memory capacity : it can store 10000 profiles,8000 traces in each profile.
Display way :LCD display
Safety protection:photoelectric sensor
Edit Programming :hand-held programmer
I/O Signals: 4 Inputs / 4 Outputs
Patterns : dots/strips/arcs/3D track
Power Supply: AC220V/350W
Working Temperature: 0 ~40℃
Relative Humidity: 20~90% (no condensation)
Complete accessories dispensing kit other relation product
NO | Name | QTY | ITEM |
1. | TH-2004D1 Robotic | 1pcs | TH-2004D1 |
2 | Teach pendant/ fix frame | 1pcs | TH-DT001 |
3 | Teach pendant Cable line | 1pcs | TH-DTC01 |
4 | Dispenser | 1pcs | TH-206B |
5 | Dispenser fix frame | 1set | TH-DXF03 |
6 | Pen and line | 1set |
|
7 | Dispensing tip | 10pcs |
|
8 | POWER cord 220V | 1pcs | TH-DP06 |
9 | Manual operation | 1pcs |
|
10 | Ex-work Report | 1pcs |
|
11 | Machinery certificate | 1pcs |
|
12 | Warranty card | 1pcs |
|
13 | CE certificate | 1pcs |
|
14 | catalogue | 1pcs |
|
Drawing:
