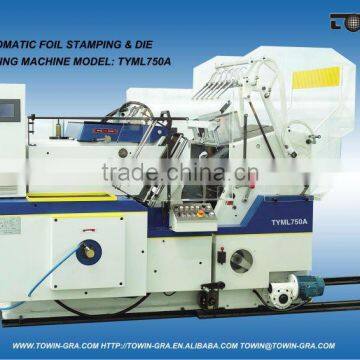

Hot foil stamping and die cutting machine
USD $50,000 - $100,000
/ Unit
1 Unit(Min.Order)
- 50 Unit / Units per Month
- Shanghai
You May Like
-
Automatic rotary hot foil stamping machine
-
Automatic foil stamping and die cutting machine
-
Automatic die cutting and foil stamping machine with stripping
-
Automatic die cutting and foil stamping machine
-
High-speed automatic folder gluer for lock-bottom paper box-ZH-YZ650
-
High-speed automatic folder gluer for lock-bottom paper box-ZH-GD1060
Product Details
| Condition | New | Type | Punching Machine | |
| Automatic Grade | Automatic | Place of Origin | Shanghai, China | |
| Brand Name | Towin | Model Number | TYML750A |
Product Description
Specifications
Foil stamping machine1.Hot foil stamping
2.Die cutting
3.Embossing
4.Compatct structure & Flexible combination
Hot foil stamping machine
Features:
1. This cutting machine adopts the imported AC converter to control the host trasmission, man-machine conversation interface, and it's booted up and braked by imported pneumatic clutch.
2. Thermal plate can be set timely heating to improve the working efficiency.
3. This machine has the features of compact structure, convenient for change version which is suitable for various products and small quantity process.
4. When do single sheet proofing, operator needs to press the buttons with both hands to ensure the safety.
Technical specifications:
| Max sheet size(mm): | 750x560 |
| Min sheet size(mm): | 280x220 |
| Paper weight(gsm): | 100-2000 |
| Cardboard(mm): | ≤1.5 |
| Max stamping size(mm): | 700x500 |
| Max fed foil length(mm): | 700 |
| Thermal plate zones: | 4 |
| Max die cutting size(mm): | 700x500 |
| File size of board frame(mm): | 710x510 |
| Max working pressure(N): | 110x10000 |
| Max stamping speed(pcs/h): | 1500pcs for 100gsm;2000pcs for 150gsm |
| Max speed(pcs/h): | 2500 |
| No. of foil feeding shafts: | 2 |
| Foil size(mm): | Min width:40;Max diameter:180 |
| Foil core diameter(mm): | 25/1"76/3" |
| Height of fed paper stack(mm): | 800 |
| Height of delivered paper stack(mm): | 160 |
| Rated power(kw): | 15 |
| Weight(kg): | 4500 |
| Dimension(mm): | 2600x1720x1975 |
