Made in China Silicone Rubber Curing Oven PU Polyurethane Vulcanizing Oven
- QingDao port
You May Like
-
Made in China Hydraulic Oil/Steam Heating Plate Vulcanizing Press / Rubber Vulcanizing Plant
-
Made in China Hydraulic Rubber Plate Vulcanizing Press
-
Made in China The Newest High Quality Rubber Plate Vulcanizing Machine
-
Made in China Rubber Plate Vulcanizing Machine Vulcanized Rubber Mold Machine
-
Made in China Hydraulic Hot Press Rubber Machine 100T 200T 300T
-
2016 New Technology Hydraulic Frame Type Vulcanizer Press Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Zhihong | Model Number | DYG-F | |
| Voltage | 220v-460v | Power(W) | 24kw | |
| Dimension(L*W*H) | 1500x1200x1500 | Weight | 1200kg | |
| Certification | ISO9001 CE | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

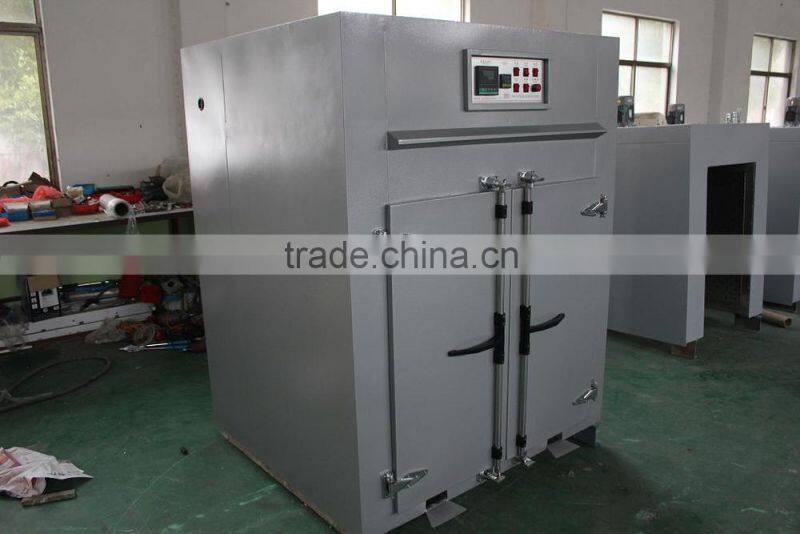

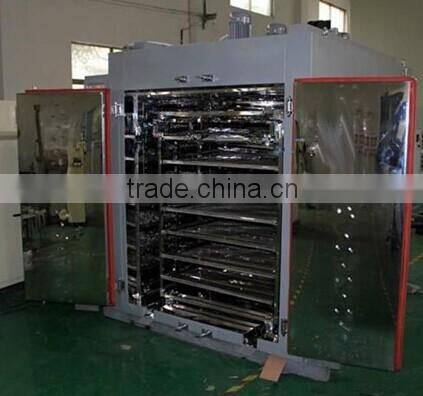

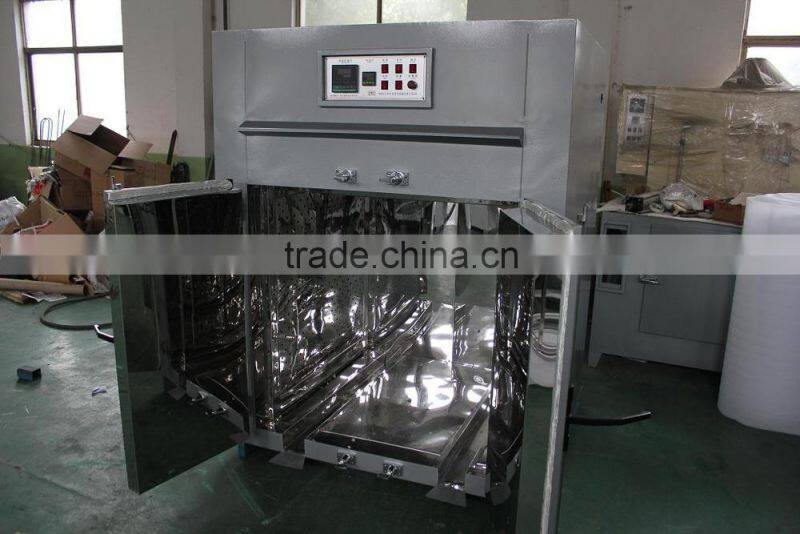

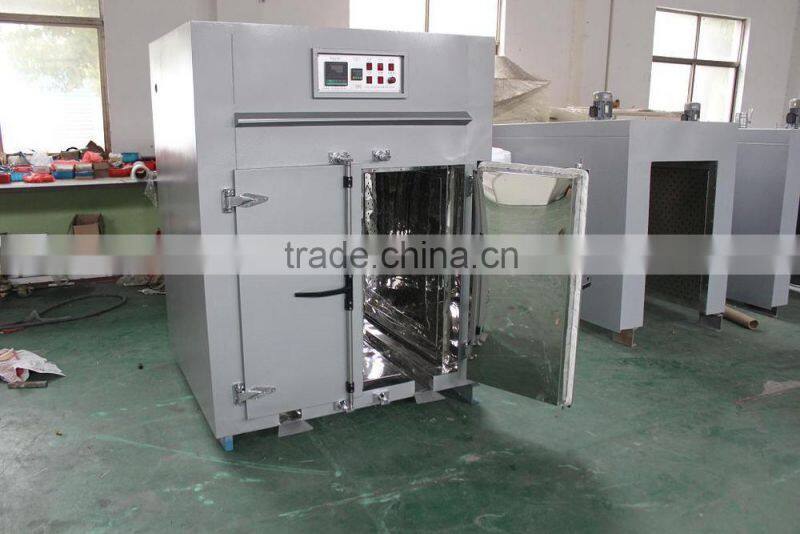

Made in China silicone rubber curing oven PU polyurethane vulcanizing oven
Introduction of the machine structure.
DYG series silicone rubber vulcanizing oven special silicone rubber industry is the role of secondary vulcanization box of silicone rubber products in an environment of high temperature secondary sulfide, the sulfide in the process of sulfide has a pungent odor, using exhaust fan to exclude outside the workshop at the top of the strong, avoiding the accumulation, in the formation of crystals attached on the inner wall of the box, and the sealing strip.
Material and accessary:
Inside material: stainless steel 304
Equipped with stainless steel trolley one set
Technical parameters for silicone rubber vulcanizing oven :
Model | voltage | Power KW | Working temperature scope(℃) | Uniform temperature (℃) | Motor powerW | Working room size (mm) | Overall size (mm) |
H×W×D | H×W×D | ||||||
DYG-A | 380V | 9 | room~300 | ±2.5 | 180 | 1000×800×800 | 1558×1410×1050 |
DYG-B | 380V | 12 | room~300 | ±2.5 | 370 | 1000×1000×1000 | 1780×1360×1250 |
DYG-C | 380V | 15 | room~300 | ±2.5 | 750 | 1200×1000×1200 | 1980×1360×1450 |
DYG-D | 380V | 18 | room~300 | ±2.5 | 750 | 1500×1200×1000 | 2180×1560×1250 |
DYG-E | 380V | 21 | room~300 | ±2.5 | 1100 | 1500×1200×1200 | 2180×1560×1450 |
DYG-F | 380V | 24 | room~300 | ±2.5 | 1100 | 1500×1200×1500 | 2180×1560×1750 |
