Product Details
| Place of Origin | Hebei, China | Brand Name | Memory | |
| Model Number | 02DE50 |
Product Description

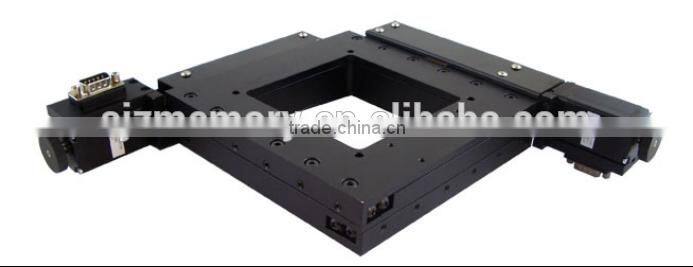

xy linear stage, motorized xy linear stage, mini motorized xy linear stage 02DE50
Specification
Model Number | 02DE50 |
X, Y Travel Range | 50mm |
Dimension | 155x155mm |
Screw Type | Ball Screw(Leading is 1mm) |
Guide | Cross-roller guide |
Stepper Motor(1.8°) | 28STH51 |
Material | Aluminum |
Surface Treatment | Black-Anodized |
Loading | 20kg |
Weight | 5kg |
Resolution | 5μm, non-MS driver 0.25μm, 20 MS driver |
Max Speed | 6mm/sec |
Repeatability | 1.5μm |
Accuracy | 5μm |
Straightness | 5μm |
Degree of Parallelization | 15μm |
Pitching | 50” |
Yawing | 25” |
Backlash | 2μm |
Accessories | Servo Motor and Linear Scale |
Features:
*Regular stage set with stepper motor and RS232 interface, can connect with motion controller convenient.
*The stage design with integrated structure for be used in limited space
*Taiwan ball screw use for smooth moving and high accuracy
*Mounting holes both on the table top and bottom for combine with other stage easily

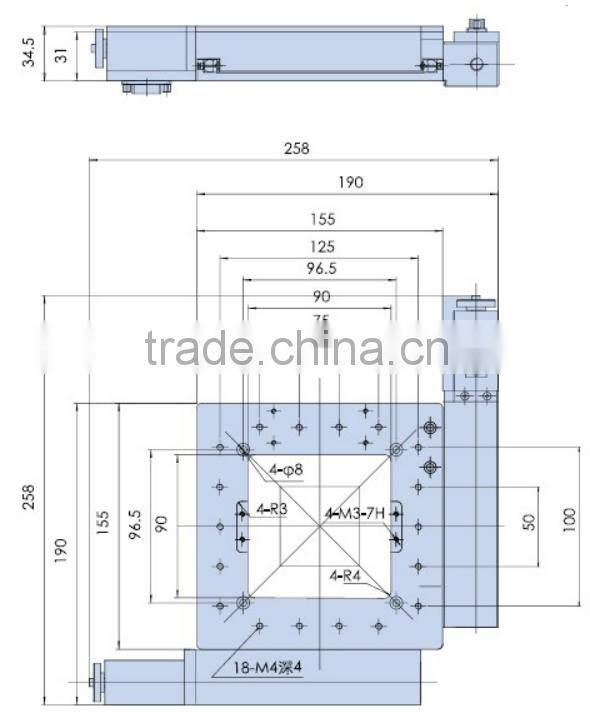

Product drawings
