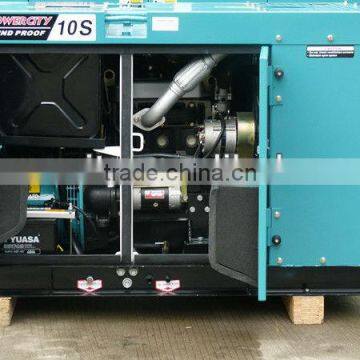

diesel generation 10kva with high quality

Specifications

ENGINE

• Heavy duty diesel engine
• Vertical inline, four stroke, water cooled.
• Direct injection fuel system.
• 12 VDC sarter and charge alternator.
• Replaceable fuel filter, oil filter and dry element air filter.
• Cooling radiator and fan.
• Industrial capacity exhaust silencer.
• Built in vibration isolators.
• Closed crankcase ventilation system with filter to eliminate engine room contamination.

ALTERNATOR

• Over-rated, brushless, rotating exciter with solid state AVR.
• Class H winding insulations provide high temperature resistance.
• Standard degree of protection IP21.
• Self exciting and self regulation.
• Factory impregnated epoxy varnished.
• Heavy duty steel frame cast-iron cover.
• Stator grease insulation covered.
• Flysheel location cooling fan.

CHASSIS

• The complete generator set is mounted as a wholeon a heavy duty fabricated steel base frame.
• Anti-vibration pads are fixed between the engine and alternator footings and the base frame.
• Base frame with integrated fuel tank.
• Cylindrical fuel gauge, low stock level switch and drain plug on the fuel tank.
• Provide external fuel connection fittings for bigger fuel reserve tank.
• Outside oil drai plug designed easy access for change oil maintenance.
• Base frame are factory rustproof using special powder paint coating.

CANOPY

• Compact designed soundproof and watherproof canopy.
• All canopy parts are designed with modular principles.
• Detachable designed doors provide most accessible for maintenance and repairs.
• All metal canopy parts are actory rustproof using special powder paint coating.
• Single point liftig eye designed for easy mobilization.
• Transparent glass control panel viewing window.
• Optimized ventilation design makes generator ventilation well.
• Large capacity designed of fuel tank

CONTROL SYSTEM

• Powercity's designed integrated artificial inteligence with manual or automatic start and stop generator.
• Automatic shutdown on fault conditions.
• Indicate servic affecting faults.
• Compatible with most standard ATS.
• Plus, the individual analog display shows for AC voltage, current load rating, frequency and engine monitoring gauges.
• Easy to replac with a plug-in type socket at the back of the control module.
• With LEDs indicate the operation status and fault alarm condition of the genset
