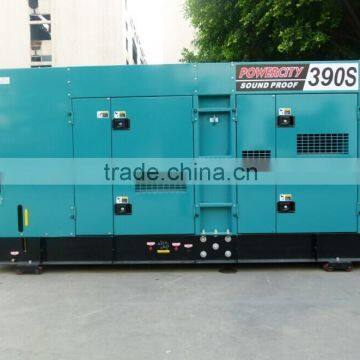

390KVA diesel generator set 3 phase
- 1000 Unit / Units per Month
- XIAMEN CHINA
- T/T
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | POWERCITY | |
| Model Number | PDG-390SC |
Product Description
• HEAVY DUTY PERFORMANCEDesigned for outdoor use with reliable diesel engine coupled with POWERCITY overated alternator to prevent unbalance problem and shock load voltage fluctuation. Performance proven and used by establishments and mobile telecommunication facilities in more than 16 countries • INTEGRATED ARTIFICIAL INTELIGENCEThe GCU-10 module starts and stops the generator (KEYLESS), indicates service affecting faults and its compatible with standard Automatic Transfer Switch (ATS) for automatic start during commercial power failure. Plus, the DSP-10 digital display shows AC voltage, battery voltage, amperes, frequency and operating hours.
• QUIET OPERATIONLow noise level making POWERCITY generators suitable for hospitals, schools, construction sites, movie industry telecommunication facilities, commercial establishments and residential areas
SPECIFICATIONS | |||
MODEL | PDG - 200SC | ||
• ALTERNATOR |
| ||
Make & Model | POWERCITY SLG-274H | ||
Frequency | H z | 50 | 60 |
Output Rating (KVA) | Continuous | 190 | 200 |
Standby | 210 | 220 | |
No. of Phase | 3 - Phase (4 Wires) | ||
Rated Voltage | V | 200 ~ 240 / 380 ~ 440 | |
Power Factor | 0 .8 (Lagging) | ||
V oltage Regulation | % | Within + / - 1.5 | |
Excitation | Brushless, Rotating Exciter (with A.V.R.) | ||
Insulation | Class H | ||
• ENGINE |
| ||
Make & Model | 6CTAA8.3-G2 | ||
Type |
| ||
Output Rating | Kw / rpm | 200 / 1500 | 203 / 1800 |
No. of Cylinders - Borex Stroke | mm | 6 - 114 x 145 | |
Piston Displace | L | 8.9 L | |
Fuel | ASTM No. 2 Diesel Fuel or Equivalent | ||
Fuel Consumption @ 75% load | L / h | 38.7 | 43.6 |
Lube Oil Capacity | L | 27.6 | |
Coolant Capacity | L | 41L | |
Battery Capacity | V - A h | 12V - 150 Ah (2 pcs) | |
Fuel Tank Capacity | L | 330 | |
• UNIT | |||
Dimensions | Length mm | 3500 | |
Width mm | 1250 | ||
Height mm | 1700 | ||
Dry Weight | kg | 2900 | |
• SOUND LEVEL | |||
d B @ 7m | 68 | 71 | |
