KX1-SIEG cnc system milling machine from shanghai sieg factory Quality Choice

FOB Price

US$ 2,000 - 3,500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shanghai, China
Brand Name	linuo	Model Number	KX1-SIEG
Type	Vertical	CNC or Not	CNC
Voltage	220V	Power(W)	500w
Dimension(LWH)	1040 x 860 x 940 mm	Weight	178kg
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

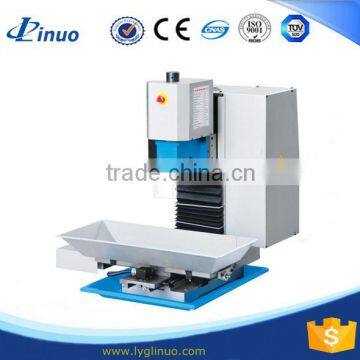

KX1-SIEG cnc system milling machine from shanghai sieg factory

Introduction:

KX1-MACH Bench CNC Milling Machine
TABLE	Table size	400×125mm
	T slot (amount×width×distance)	3×8×35mm
	Max. load	20kg
TRAVEL	X travel	260mm
	Y travel	110mm
	Z travel	180mm
	Spindle nose to table	60-240mm
	Spindle center to column	125mm
SPINDLE	Spindle taper	MT2
	Spindle motor	500w
	Spindle speed	100-7000r/min
FEED	The max moving speed	2000mm/min
	The max feeding speed	500mm/min
	Power of X/Y	1.35 Nm
	Power of Z	2.2Nm
ACCURACY	Positioning accuracy	0.015mm
ACCURACY	Repeatability accuracy	0.01mm
OTHERS	Power	230/120V
	Weight(NW/GW)	280/340kg
	Overall dimension	1040×860×940mm
	Packing size	1170×960×1100mm

MT2 Spindle Type, 7000rpm Spindle speed

One key type lubrication system

X,Y,Z,4th axis

MACH3 system interface
