XH7132 Mini Cnc Machine Center
- Qingdao for XH7132 mini cnc machine center
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Shandong, China | Brand Name | linuo | |
| Model Number | XH7132 | Voltage | 380V | |
| Power(W) | 3.7kw | Dimension(L*W*H) | 2100x1970x2170mm | |
| Weight | 2750kg | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

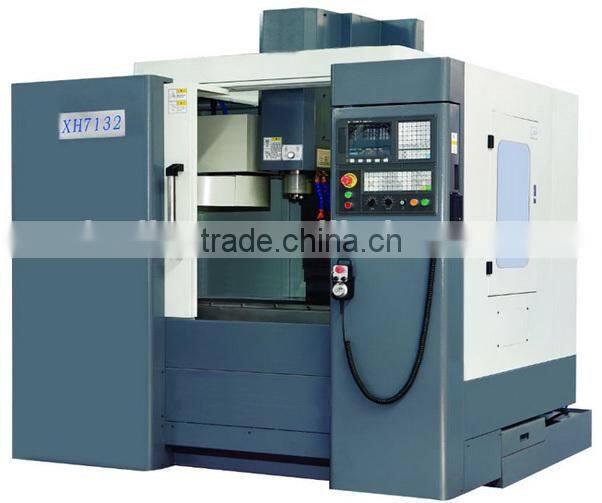

XH7132 mini cnc machine center
Product Description for XH7132 mini cnc machine center
Features:
| unit | XH7132 |
worktable : |
|
|
Table size | mm | 920x320 |
T slot | no | 3 |
Centre distance | mm | 85 |
T-Width | mm | 14 |
Max. load of worktable | kg | 300 |
machining range : |
|
|
Longitudinal travel | mm | 620 |
Cross travel | mm | 350 |
Vertical travel | mm | 500 |
spindle nose to table surface | mm | 100-600 |
spidle axis to column surface | mm | 395 |
spindle travel | mm |
|
spindle : |
|
|
Spindle taper |
| BT40 |
Speed Range | rpm | 40-6000 |
Max.spindle torque | N.M |
|
motor |
|
|
spindle motor power | kW | 3.7 |
feed motor (X/Y/Z) | kW |
|
feed : |
|
|
cuttiing feed X/Y/Z | mm / min | 2.5-3000 |
rapid feed X/Y/Z | m / min | 18 or 24 |
tool magazine |
|
|
tool magazine capacity | piece | 16 |
tool magazine type |
| umbrella-type |
Max. tool diameter (full) | mm | Φ130 |
Max. tool length | mm | 250 |
Max. tool weight | kg | 8 |
Tool changing time (tip to tip) | s | 1.2~2 |
accuracy |
|
|
positioning accuracy | mm | ±0.015 |
repeat positioning accuracy | mm | ±0.0075 |
others |
|
|
air pressure | Mpa | 0.5 |
overall dimensions(LxWxH) | mm | 2050x1875x2100 |
N/W | KG | 2540 |
Production&Workshop for XH7132 mini cnc machine center
Packaging&Shipping for XH7132 mini cnc machine center
Customer&Expo for XH7132 mini cnc machine center
Companny information for XH7132 mini cnc machine center
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for XH7132 mini cnc machine center
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
