VMC650L cnc vertical machining center
- Qingdao for VMC650L cnc vertical machining center
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Place of Origin | Shandong, China | Brand Name | LINUO | |
| Model Number | VMC650L | Voltage | 380V | |
| Power(W) | 7.5kw | Dimension(L*W*H) | 2500x2250x2300mm | |
| Weight | 3000kg | Certification | CE ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
VMC650L cnc vertical machining center
Product Description for VMC650L cnc vertical machining center

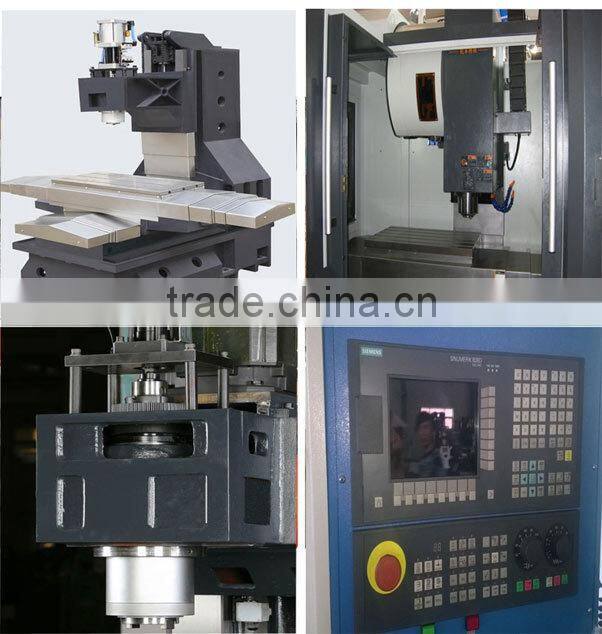

The machine advantage: 1.ultra-wide A-shaped column design
2.Full supported base design
3.ultra-wide linear guide way can bear heavy load,ensure high stability and cutting precision
4.the foundation is the box structure,which has the feature of high rigidity.
5.the traditonal scratch technique ensure the surface of the slide way keeping the high precision long.
6.is applicable to process plate,board,shell molds and small complex parts.
7.Automatic lubrication system can lubricate the machine at fixed time,fixed location,fixed quantity.
ITEM | Specification | ||
Table size L(mm)×W(mm) | 900×360 | ||
T slot QTY /width/interval distance(mm) | 3-14-120 | ||
Maximum load(KG) | 400 | ||
X travel (mm) | 650 | ||
Y travel (mm) | 380 | ||
Z travel (mm) | 480 | ||
Spindle nose to table (mm) | 100-600 | ||
Spindle center to column (mm) | 410 | ||
Spindle taper | BT40/120 | ||
Max. spindle speed (Rpm) | 8000 | ||
Main motor (kW) | 7.5 | ||
Feed motor
| X torque(N.M) | 6 | |
Y torque(N.M) | 7.7 | ||
Ztorque(N.M) | 7.7 | ||
Max. install size | 7.5 | ||
Rapid moving speed (m/min.) | 12/12/10 | ||
Cutting speed (mm/min) | 1-6000 | ||
Ball screw (diametermm/pitch )mm | 32/10 | ||
Accuracy
| Positioning accuracy (mm) | 0.016 | |
Repeatability accuracy (mm) | 0.008 | ||

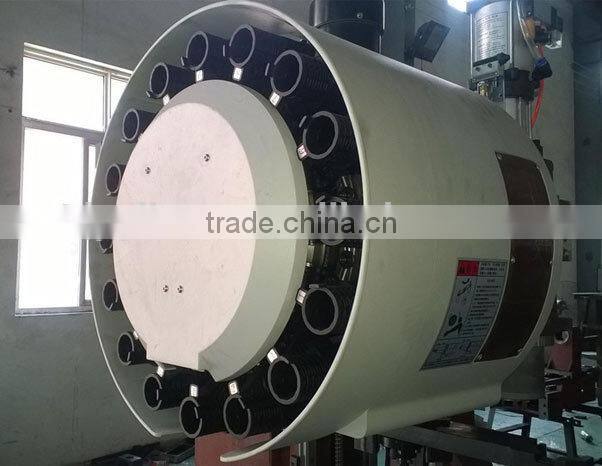

Tool changer | Funnel type (optional ) BT40 | 16 | |
Air pressure Mpa | 0.6 | ||
Machine weight (kg) | Frame | 2500 | |
Complete machine | 3000 | ||
Machine overall size : L(mm)×W(mm)×H(mm) | Frame | 2200×1550×2000 | |
Complete machine | 2500x2250x2300 | ||
Production&Workshop for VMC650L cnc vertical machining center
Packaging&Shipping for VMC650L cnc vertical machining center
Customer&Expo for VMC650L cnc vertical machining center
Companny information for VMC650L cnc vertical machining center
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for VMC650L cnc vertical machining center
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
