Product Details
| Condition | New | CNC or Not | Normal | |
| Drilling Speed | 78-1100r/min | Place of Origin | Jiangsu, China | |
| Brand Name | linuo | Model Number | ZQ3050*16 | |
| Voltage | 380V 50Hz | Power(W) | 4kw | |
| Dimension(L*W*H) | 2170*950*2450mm | Weight | 2800kg | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
radial drilling machine ZQ3050
Product Description for radial drilling machine ZQ3050
| Specification | Units | ZQ3050×16 |
| Max. drilling diameter | mm | 50 |
| Distance spindle nose and work surface of base | mm | 260-1050 |
| Distance between spindle axis and column | mm | 360-1600 |
| Spindle travel | mm | 220 |
| Spindle taper | Morse | 5 |
| Range of spindle speeds | r/min | 78-1100 |
| Number of spindle speeds | step | 6 |
| Range of spindle feeds | mm/r | 0.10-0.56 |
| Number of spindle feeds | step | 5 |
| Rocker rotary angle | ° | 360 |
| Motor power | kw | 4 |
| Movement motor power | kw | 1.5 |
| Machine weight | kg | 2800 |
| Overall dimension | mm | 2170×950×2450 |

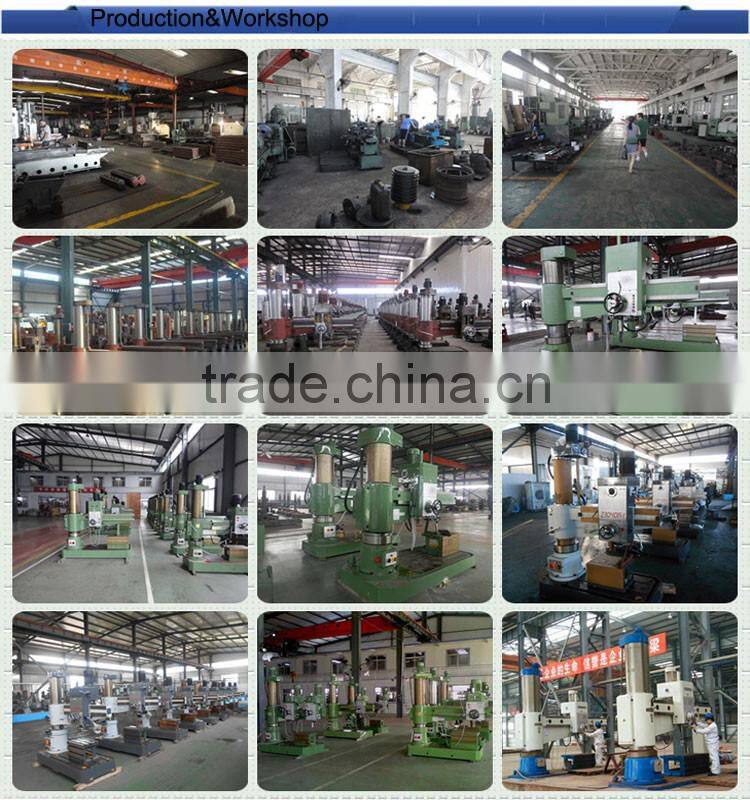

Production&Workshop for radial drilling machine ZQ3050

Packaging&Shipping for radial drilling machine ZQ3050

Customer&Expo for radial drilling machine ZQ3050

Companny information for radial drilling machine ZQ3050
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.

Our services for radial drilling machine ZQ3050
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
