bearing housing and labyrinth seal
- Xin gang
- T/T
You May Like
Product Details
| Material | carbon steel or plastic | Place of Origin | Hebei, China | |
| Brand Name | HXT | Model Number | varieties |
Product Description
The

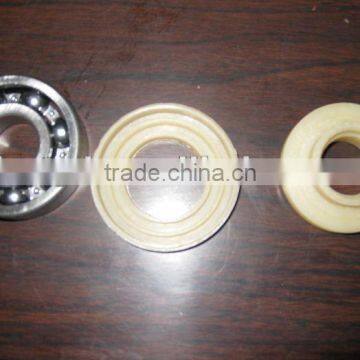

The bearing, which uses the world famous brand, is the roving crack, deep groove ball and double sealing bearing. It makes the idler has the ideal static and dynamic blance that is better than the national standard.
Specification | External D(mm) | Bearing seat (mm) | Caliber (mm) | Hole (mm) | Height (mm) | Deep (mm) | Thickness (mm) |
89*6204 | 84 | 47 | 47 | 35 | 28 | 28 | 3 |
108*6204 | 104 | 47 | 47 | 35 | 28 | 28 | 3 |
159*6204 | 153 | 47 | 47 | 35 | 28 | 28 | 3 |
89*6205 | 84 | 52 | 52 | 40 | 32 | 32 | 3 |
108*6205 | 104 | 52 | 52 | 40 | 32 | 32 | 3 |
133*6205 | 128 | 52 | 52 | 40 | 32 | 32 | 3 |
159*6305 | 153 | 62 | 62 | 40 | 36 | 36 | 3 |
133*6306 | 128 | 72 | 72 | 53 | 38 | 38 | 3 |
194*6308 | 188 | 90 | 90 | 65 | 47 | 47 | 3 |
We can support series of conveyor idler(roller)/pulley/bearing housing !
We will quote to you as your specific information or as drawings!
