conevyor pulley,driving drums
- Xingang
- T/T
You May Like
Product Details
| Type | Flat Belt | Material | Other, carbon steel | |
| Place of Origin | Hebei, China | Brand Name | HXT | |
| Model Number | Dia:500mm |
Product Description
Direction reversing pulley,it is an important part of belt conveyer. It is used to change the move direction of conveyer belt. For example, the tail pulley, guide pulley and take-up pulley.
Type | Belt width (mm) | Standard Diameter(mm) | Length (mm) |
Drive Head Pulley | 500 | 500 | Length of the pulley depends on the belt width of the conveyor |
650 | 500, 630 | ||
800 | 500, 630, 800 | ||
1000 | 630, 800, 1000 | ||
1200 | 630, 800, 1000 | ||
1400 | 800, 1000 | ||
Tail Pulley | 500 | 250, 315, 400, 500 | |
650 | 250, 315, 400, 500 | ||
800 | 250, 315, 400, 500, 630, 800, 1000 | ||
1000 | 250, 315, 400, 500, 630, 800, 1000 | ||
1200 | 250, 315, 400, 500, 630, 800, 1000 | ||
1400 | 250, 315, 400, 500, 630, 800, 1000 |
We can support series of conveyor idler(roller)/pulley/bearing housing !
We will quote to you as your specific information or as drawings!

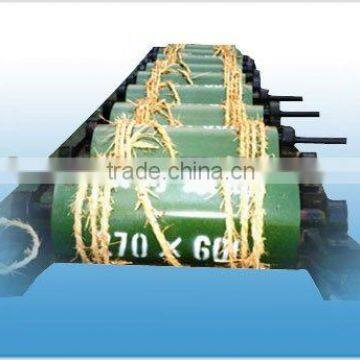

We are providing Conveyor Pulleys that are appreciated by the clients for continuous operation, increased bearing life and less power consumption. In order to offer quality Conveyor Pulleys, we use heavy tubes fabricated from steel plates to manufacture the shell. Further, the pulley shafts are made up of carbon steel machined with proper bore and key way. We are also capable of offering taper lock bushings along with our range of Conveyor Pulleys. The pulley drum is grooved with rubber lagging properly to resist slippage and the shafts are equipped with anti-fr lf-aligning ball bearings.iction se
