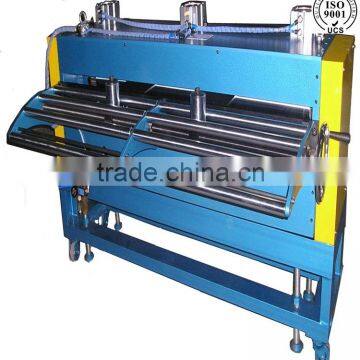

ISO9001-2008 Automatic Servo Roll Feeder and strainghtener machine (NCF-1400)

  ISO9001-2008 Automatic Servo Roll Feeder and strainghtener machine (NCF-1400)

(1). Material width range                                           1-1400mm

(2). Material thickness range                                      0.1-3.2mm

(3). Feeding length range                                          9999.99mm

(4). Feeding speed                                                    Max. 18m/min

(5). Servo motor                                                       chain(Taiwan)

(6). AC power                                                         380V 50HZ 3 Phase

Machine main feature

1. The machines equip CE certificate components from world wide famous brands such as Siemens servo motor and PLC, Shneider low voltage componets,  all the parts have high quality and excellent safety.

2.High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system. So that the precision can maintain within +/-0.02mm.

3.Phase-style feeding function: It can input 18 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products (option)

4.Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy.

5.High efficiency release device: It can set up release angle quickly, only mact CAM signal of and adjusted feed thickness can done.

6.Feeding length setting: Input feed length on the controller panel directly.

7.Feeding unit: The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC is 60 and hard chrome plated.
