Product Details
| Place of Origin | Guangdong, China | Brand Name | YOUYI | |
| Model Number | NCF-200 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

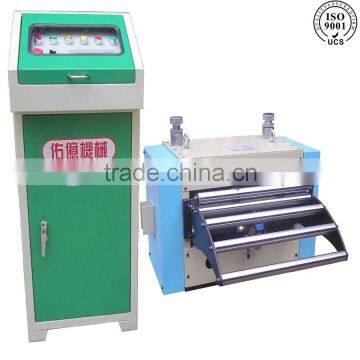

feeder machine
Product Description
| High-precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system, | ||||
| So that the precision can maintain within_0.03mm. | ||||
| Phase-style feeding function: it can input 20 groups fo different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products(option.) | ||||
| Manual model: it can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy. | ||||
| High-efficiency release device: it can set up release angle quickly, only cam single of and adjusted feed thickness can done. | ||||
| Feeding length setting: input feed length on the controller panel directly.' | ||||
| Feeding unit: The roll adopts middle-hollow style, being light and with low inertia for electroplate. The surface hardness HRC is 60½ d chrome plated. |
| Model | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 | |
| NCF-100A | NCF-200A | NCF-300A | NCF-400A | NCF-500A | NCF-600A | NCF-700A | NCF-800A | NCF-1000A | ||
| Material Width (mm) | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 | |
| Material Thickness | 0.1-1.6 | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 | 0.1-2.5 | 0.1-3.2 | 0.1-3.2 | 0.1-3.2 | 0.1-3.2 | |
| Standard Type | 0.1-1.6 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 1000 |
| Material Thickness and Width | 2 | 180 | 280 | 300 | 350 | 400 | 450 | 480 | 550 | |
| 3.2 | 80 | 100 | 120 | 150 | 180 | 210 | 240 | 280 | ||
| Feed Length (mm) | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | 9999.99 | |
| size of machine (mm) | 430*500*850 | 530*500*850 | 630*500*850 | 730*500*850 | 830*500*850 | 930*500*850 | 1030*500*850 | 1130*500*850 | 1330*500*850 | |
| size of control box(mm) | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | 980*400*450 | |
| weight of machine(kg) | 112 | 172 | 232 | 292 | 352 | 412 | 472 | 532 | 652 | |
| Feed Speed (m/min) | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
| Power(V) | AC three 220/380V | |||||||||
