High Frequency Transformer for lighting
Negotiable
/ Piece
1000 Pieces(Min.Order)
- 80000 Piece / Pieces per Month
- HongKong
- Credit Card
You May Like
-
EMI Filters, Common Mold Choke with High Saturation/Efficiency
-
ER type transformer ,customized are welcomed
-
High-frequency Transformer, Customized Specifications Welcomed
-
Customized high frequency light power transformer
-
High frequency electrical transformer,customized are welcomed
-
High frequency inverter transformer Customized Specifications Welcomed
Product Details
| Place of Origin | Guangdong, China | Brand Name | emeis | |
| Model Number | OEM |
Product Description
Specifications
Place of Origin: Guangdong China (Mainland)Brand Name: emeis
Usage: Electronic Phase: Single
Coil Structure:toroidal
Product Description
Pin 1,2,3: primary winding (If possible, please remove the center tap at
pin 3)
Pin 4,5: aux winding
Pin 6,8: secondary winding

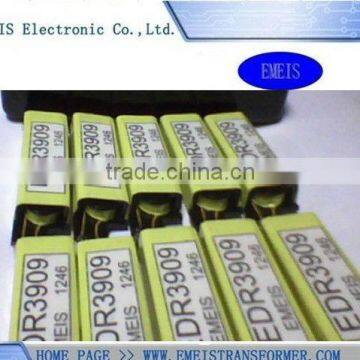

Transformer with form factor: EDR3909
Electrical properties:
RMS transferred power: 25W
Peak transferred power: 46W
Power varies with line voltage due to PFC.
Switching frequency: 100-200Khz
Required safety between primary and secondary windings: UL609950 / IEC / EN
Quality: MTBF: > 80000hrs at 70 degrees Centigrade
Primary winding:
Lnom = 750uH +/-20%
Rdc = <= 1.1Ohm
Aux winding:
Turns primary vs aux: 6.84:1
Output voltage: 20V
Output current: >= 20mA
Secondary winding:
Turns pri vs sec: 3.8:1
Output voltage: 36V nom (40V max)
Output current (RMS) : 0.65A
(wish) Center tap : at 44% of the winding
RDC: <= 100mOhm
