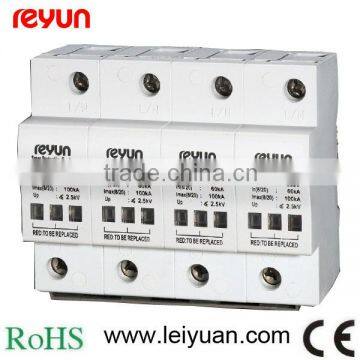

Surge Protective Device SPD 3P+N Imax 100kA

3P+N Surge protective devie 100kA spd

Surge protective device (SPD) 3P+N Imax 100kA

LYD1 series surge protective device is suitable used in the IT, TT, TN-S, TN-C-S and low-voltage AC power distribution system, rated voltage up to 380V, to protect from direct and indirect lightning impulse and other transient over voltage. As per the conditions of IEC61643-1:1998-02 ST standard, Class I surge protective device, it is category B surge protective device. SPD has two protection modes: MC and MD, SPD is incompliance with IEC 61643-1 standards.

Operation elements

1.SPD as only one side of terminals ,able to prevent from being electric touching, indoor fixedly mounted, limiting voltage.

2.SPD has build-in disconnector, when SPD is invalid due to overheating or breakdown, the disconnector can automatically separate SPD from the network, meanwhile send an indication signal. The visible window show white color in normal service, if to be separated from network, it will show red color.

3.Maxi discharge current of each wire : up to 100Ka.

Installation

1. To be mounted between LPZ0A or LPZ0B zone and LPZ1 zone, adopts 35mm standard mounting rail. The cross sectional area of multi-stand soft copper conductor: 6-35mm².

2. Generally it shall be mounted in the incoming side of main distribution panel or box.

3. Earth wire shall be of 16mm² due color conductor, its length not more than 500mm.

4. In order to eliminate the influence on normal service of power network due SPD is invalid, it shall add fuse or breaker to be series connected in L line.(Note: selected according to standard current In.)

Technical parameter

Outside size:
