Home > Products > LED Deco Lighting > LED Tube Light SLT38XXDMX-G

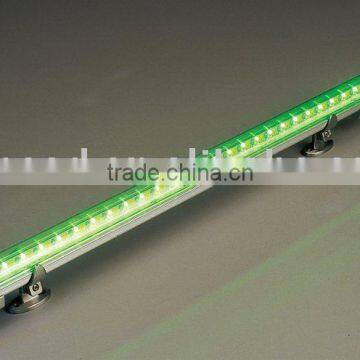

LED Tube Light SLT38XXDMX-G
- 1 Piece / Pieces per Month
- Local Sea Port
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SUMMIT | |
| Certification | UL, CE | Model Number | Other, SLT38XXDMX |
Product Description
Specifications
led tube light SLT38XXDMX series tube is the lastest full color energy savings LED linear Tube solution designed for pro color.Item Name: Summitlite Φ38tubes
Item NO#: SLT3803,3806,3810 series tubes
Summitlite Φ38 series was divided into three paterns and comes in 3 standard lengths which are 30, 60, and 100cm respectively based on SUMMITLITE LED technology!
Summitlite SLT38XXDMX RGB version :
SLT38XXDMX series tube is the lastest full color energy savings LED linear Tube solution designed for professional color changing projects. They can be controlled via any standard DMX-512 controller with 3, 4, and 5 channel configurations.
Summitlite SLT38XXDMX is constructed of a professional extruded aluminum profile with an optically clear polycarbonate cover and professional mounting system.
| SLT38XXDMX | ||||
| Item No | SLT3810DMX | SLT3806DMX | SLT3803DMX | |
| LED Color | RGB | |||
| Luminance | 56lm | 40Lm | 23Lm | |
| Beam Angel | 85°X40° | |||
| Tube section(mm) | Φ38 | |||
| Tube cover | Clear PC/Aluminum Base | |||
| Length | 1000mm | 600mm | 300mm | |
| LED Qty.of tube | 135PCS | 90PCS | 45PCS | |
| Operating Temperature | -20 to 40 | |||
| Operating Humidity | 0 to 95 | |||
| Protection rate | IP40 | |||
| Connector | 4-pin connector | |||
| DMX channels | 3,4,5 | |||
| Controller | Standard DMX512 controller | |||
| Functions | Color Change Color | |||
| Input Current | 1.4A | |||
| Input/output Voltage | 12V | |||
| Max Power | 12W | 8W | 4W | |
| Dimensions(MM) | 1000LX38WX70H | 670LX38WX70H | 340LX38WX70H | |
| Net Weight | 0.35KG | 0.28KG | 0.2KG | |
| Light output | ||||
| Color | Red | Green | Blue | White |
| Total output(lumen) | 22.4 | 63.0 | 15.0 | 95.2 |
| Power (Watt) | 1.9 | 3.0 | 3.0 | 6.2 |
| Efficiency(Lm/W) | 11.7 | 21.0 | 5.8 | 15.3 |
| Function | 5 Channel | 4channels | 3 channel | |
| P(dimmer) | 1ch | |||
| W | 2ch | 1ch | ||
| R | 3ch | 2ch | 1ch | |
| G | 4ch | 3ch | 2ch | |
| B | 5ch | 4ch | 3ch | |
Update Date:2010-5-13 1:51:54
