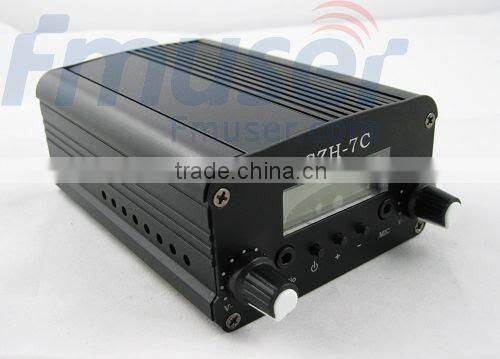

7W Fmuser CZH-07C FM transmitter radio  Black

Description:

-------------------------------------------------------------------------------------------------------------

Fmuser FM transmitter is a professional grade low power FM transmitter operating in the commercial FM band (76 - 108MHz).
It is intended for indoor (churches, theaters, cinemas, auditoriums, conference halls , Hostels, Commercial Plaza ,Shopping Center,Government Building, Sports Center, Fitness Center,Conference) or outdoor (business parkings, tourist attractions, talking signs, Rural radio, Outdoor Advertising ,Outdoor Activities ,Orienteering) short range broadcasting in a variety of applications:  hearing assistance, translation, information, sound re-enforcement.
Its outstanding RF and audio performances, ruggedness, reliability and versatility make FMuser FM transmitter stand out from conventional hearing assistance systems.

Features

-------------------------------------------------------------------------------------------------------------

• User programmable frequency

• Easily choose your frequency LCD and buttons,No manual tuning required

• Japan Phase Lock Loop (PLL) Technology

• Works with standard FM receivers

• Hi-Fi Steroe audio quality

• Adjustable input level with over modulation indicator

• Stereo 1/4-F audio input connector

• Choice of GP antenna or telescopic antenna

• Temperature protect

• Standing Wave Protect

• 5 years warranty

Technical Specifications

-------------------------------------------------------------------------------------------------------------

• DC input:2.1mm

• input voltage :DC12V

• operating current:1500mA

• Frequency:76~108MHz

• Modulation:WFM

• Frequency Step:0.1MHz

• Frequency stabilization method:PLL

• deviation:±75KHz

• RF Output:7W

• Output Impedance:50Ω

• Harmonic radiation:-60db

• Frequency Response:50~15000Hz

• Distortion:0.2%

• Pre-emphasis delay:50us

• Stereo Separation:40db

• Input level:-15dbV

• Input impedance:50KΩ

• SNR:65db

• Match the microphone:ECM mic

• Size:128*95*55mm

• Color:Black

• Weight:0.45kg

• Working temperature:0~45°C

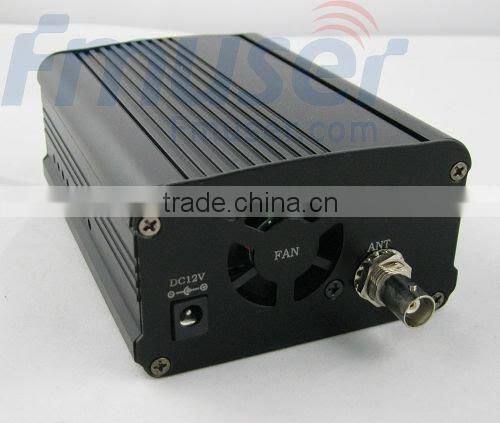

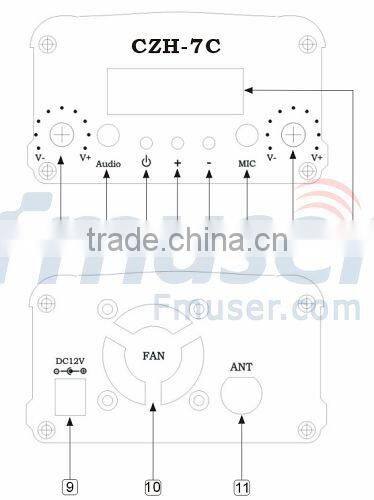

Front and Back panel description

-------------------------------------------------------------------------------------------------------------

1. AUDIO INPUT LEVEL: controls the audio input level (Tunner)

2. AUDIO INPUT: connect your audio source here (Input level:-15dbv ; Connector:3.5mm)

3. DC POWER SWITCH: turns the transmitter ON or OFF

4. FREQUENCY UP: transmitting frequency UP

5. FREQUENCY DOWN: transmitting frequency DOWN

6. MIC INPUT: connect your Electret condenser microphone here (Connector:3.5mm)

7. MIC INPUT LEVEL: controls the MIC input level (Tunner)

8. FREQUENCY DISPLAY: Displays the programmed transmitting frequency (76.0 – 108.0 MHz)

9. DC INPUT: Connect the DC adaptor (supplied) here (12V 2A,Core 2.1mm))

10.CPU FAN

11.TRANSMITTING Connector:Connect the GP antenna (50Ω BNC)
